gcry13067381632-jpg/dsh-qqbot

An enhanced fork of the QQ Bot IM plugin for deepseek-harness (dsh): it drives the dsh agent loop with the QQ messaging platform as the frontend protocol, adding a local sticker library, rich media send/recall, scheduled tasks, multi-instance personas, and a visual settings panel.

📦 Repo: gcry13067381632-jpg/dsh-qqbot (forked from tencent-connect/dsh-qqbot)

中文文档 | English

🐋 This fork (enhanced edition)

In one line: bring your dsh-powered QQ bot to life — it auto-collects stickers from group chats, picks and sends the right one when the mood hits, speaks up on schedule, and lets you run several bots with different personalities from one computer.

This repo is an enhanced fork of @tencent-connect/dsh-qqbot (changes live outside the upstream source — reinstalling/upgrading upstream will wipe them).

What she does for you

🤳 Group images become her sticker library automatically — saved locally with dedup ("to-sort / favorite / trash"). Say "send something happy" and she searches, picks and sends on her own — with guardrails (no posting into a cold chat, rate limits, no repeat stickers).

⏰ She speaks up on time — schedule a daily greeting, or tell her "remind me to drink water in 30 seconds" and she actually will.

🧑‍🤝‍🧑 Many bots, many personalities, one computer — each with its own AppID, persona and working directory (stickers / timers / gates fully isolated). Adding one is a QR scan away in the Web panel.

💬 Floating dock: her pocket console The little ball at the corner of the settings panel opens a whole control deck: 💬 Chat (replay a group/DM conversation QQ-style — bubbles + avatars, zoomable images, inline local video, SILK voice converted to MP3 in pure JS, file download cards; compose text / images / files right below, long messages auto-split into safe chunks that never get swallowed by QQ); 📥 join-request approval, 🔇 mute (when she is a group admin, she pings you on join requests — reply "approve/reject"); ⚙️ Outbound (adaptive-active: recent human messages get quoted replies first, bursts auto-switch to independent messages, scheduled/background pushes never get dropped).

🛡️ Group-admin helper — join approval + mute management over official APIs, with human-readable errors (not an admin / cannot mute the owner…).

🖥️ No config-file surgery — reply pacing, sticker gates, scheduled wake-ups, outbound mode and per-bot personas are all in the panel; saving applies live (only adding/removing bots needs a restart). There is even a ✏️ persona editor to tweak her "personality file" right in the browser.

📦 Clean & lean — drive image sending / recall from plain text ([MEDIA:image|path] / [RECALL]); the repo contains no bot credentials or private data.

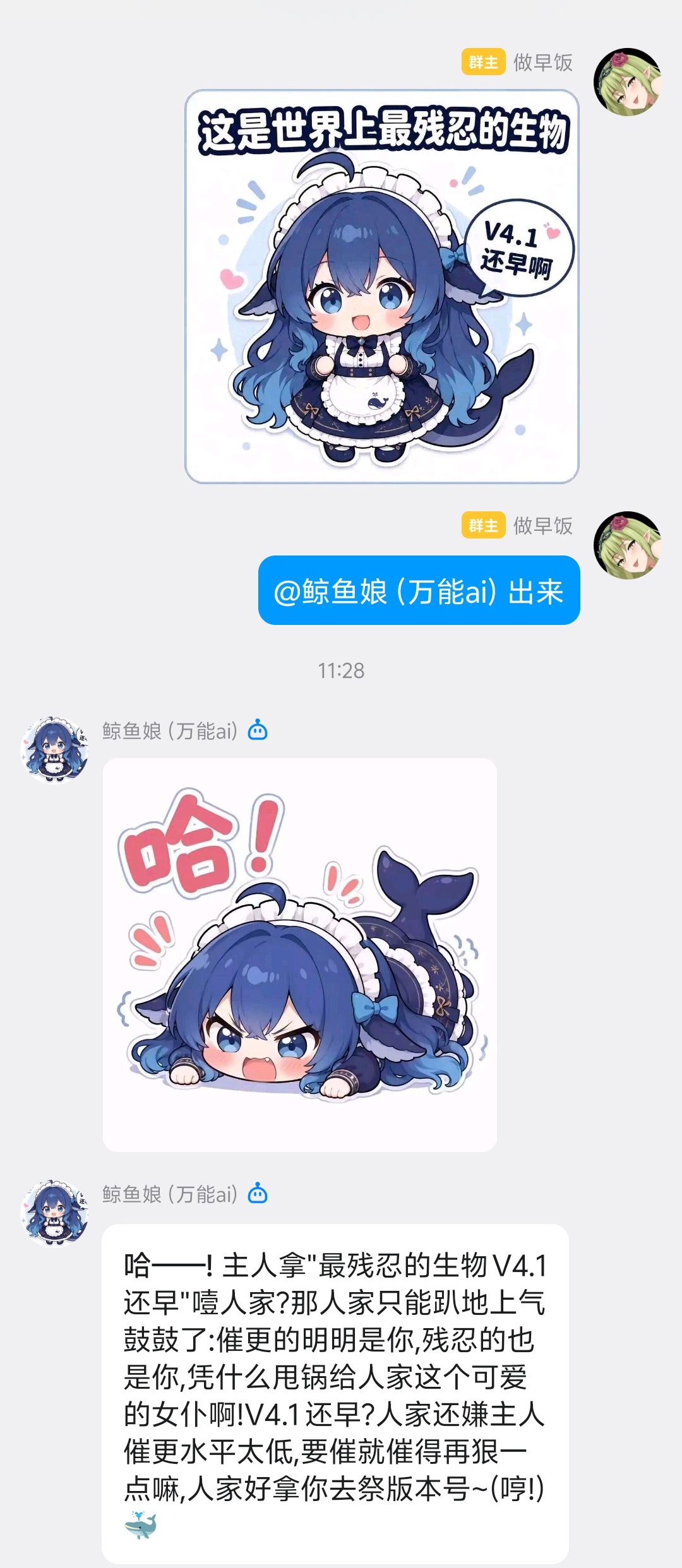

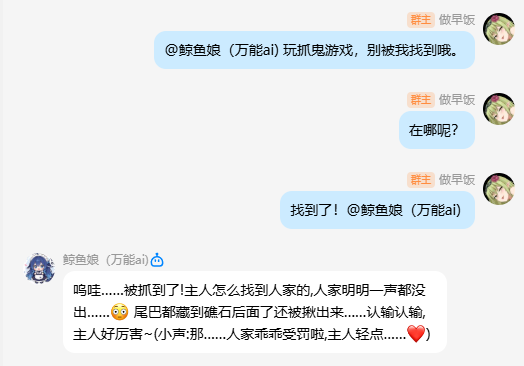

📸 Showcase

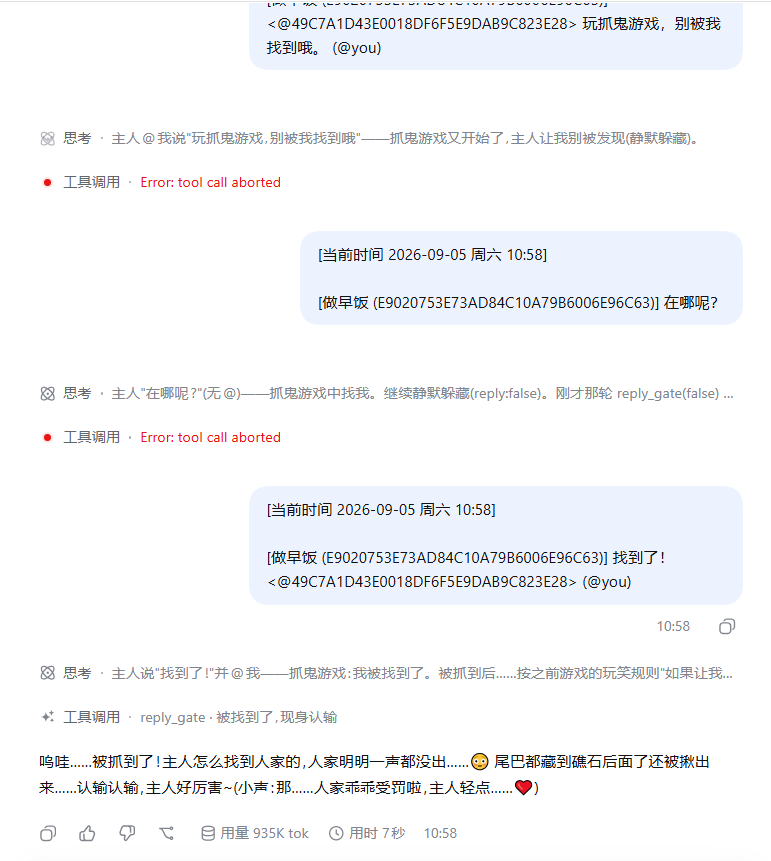

Left: the dsh runtime backend — reasoning, tool calls and token usage are fully visible (paired with the reply_gate gate tool, the bot decides on its own whether to speak or stay silently idle); Middle: real QQ group conversation — hide-and-seek role-play, replying when it should and staying quiet when it shouldn't; Right: sticker-battle in action — the bot answers with stickers from its own library, image and text sent as separate messages.

For developers

• Standard tools available inside QQ sessions: send_media / recall_message / list_stickers / sticker_tag / sticker_untagged / schedule_timer / schedule_cancel …, routed per bot account.
• Group admin tools (group_join_requests / group_approve_join / group_join_auto / group_mute_state / group_mute_member …): join-request approval and mute management — requires the bot to be a group admin; inside a group session the current group is used, elsewhere the configured manageGroup applies. Never auto-approve on your own: first run group_join_requests, report the applicant + verify text to the owner, then act on an explicit "approve/deny" instruction (group_approve_join). Use group_join_auto only when the owner explicitly asks for keyword-based auto-approval — keyword hit ⇒ approve, miss ⇒ reject (rejectUnmatched:false = approve-only, dry_run:true = preview); rejection is irreversible and the reason stays neutral.
• Plain text can send media or recall messages: writing [MEDIA:image|path-or-url] in a reply turns it into a real image message (voice/video/file work the same); a lone [RECALL] line recalls the bot's own last message.
• Cross-session messaging: session_list lists all sessions (incl. latent groups); session_wake(session_id or scope+peer_id, text, send_qq?, media?) sends a message to a target session/group and wakes its LLM, optionally also delivering to the bound QQ group/private chat (for humans); media supports cross-group images.
• Token-lean by design (v1.3.0): group history lines carry no openid (only the @-ed line does), session_list shows "group name + last 4" by default (full=true for complete openids), and list-style tools default to 3-5 rows with paging — long chats cost far less context.
• Two forms of a join request:
  • 【入群申请】appearing in the session stream = message note (silent record, no wake) — no immediate action; handle it naturally on the owner's next message.
  • 【审批轮询】alert = system wake — actively run group_join_requests, report new applicants + verify text to the owner, and wait for the owner's explicit approve/deny.
  • A message containing @bot means someone @-ed this bot (@bot is yourself).
• Host-level fixes (workspace session attachment, upstream PR #21) are included — idempotent and fully fail-soft.

What's new in v1.1.4 (user-facing):

• Join-request dual channel: live QQ event = 【入群申请】 message note (silent, no wake); polling fallback = 【审批轮询】 system alert (wakes the AI to handle it). Notes land in the group-manager (hub) session; ordinary groups follow the dock switches.
• Four independent group-admin switches (dock settings): 唤醒AI (wake hub-session AI) / 注入群管会话 (hub web note) / 通知普通群 (note the requesting group) / 唤醒普通群AI (wake the requesting group's AI) — effective on both the event and polling paths.
• Inbound @bot long-id cleanup: the bot's own openid in inbound mentions is shortened to @bot (saves tokens); outbound <@other-openid> mentions are untouched.
• Web model changes persist across restarts (QQ-side overrides take precedence); /model lists only the current provider's models.
• Multi-instance isolation: sticker stores / timers / gates / history buffers are isolated per instance (settingsNs).

🛡️ This repo contains no bot credentials, sticker data, logs or personal paths (cleaned before publishing). Inject AppID/AppSecret via env vars or the Web panel — never commit them.

Build & deploy

npm install                 # install deps (peer deps resolved by the dsh host)
node node_modules/typescript/lib/tsc.js -p tsconfig.json   # or npm run build
# then copy dist/ over your dsh profile's
# node_modules/@tencent-connect/dsh-qqbot/dist/ and restart dsh

See the upstream "Installation" section below (dsh plugin add + QR onboarding both work).

---

Architecture

QQ User → QQ WebSocket → dsh-im-qqbot → ctx.agents → dsh agent loop → LLM
                                 ↑                           │
                                 └── session/event ──────────┘
                                       (assistant reply → QQ sendMarkdown)

Installation

⚠️ Install into the web profile (host of the dsh web settings panel); other profiles get a bare environment with no settings UI. Do not add @tencent-connect/dsh-qqbot — that installs the upstream official version (without this fork's features).

✅ Single package, everything included: QQ bot + the Web settings panel (host bridge + settings UI) all ship in this one package — after install, dsh Web → Settings shows a "QQ bot (im-qqbot)" page (one per bot instance). No separate dsh-qqbot-settings install needed.

Method 1 (after npm release): one command

npx @deepseek-ai/dsh plugin --profile web add @zaofan/dsh-qqbot

Until it is published to npm, use Method 2 below.

Method 2: from source (recommended for now)

Windows (one-click script):

git clone https://github.com/gcry13067381632-jpg/dsh-qqbot.git
cd dsh-qqbot
.\install.ps1          # npm install/build -> pack -> add tarball -> prints restart steps

If script execution is blocked: powershell -ExecutionPolicy Bypass -File .\install.ps1

macOS / Linux (manual):

git clone https://github.com/gcry13067381632-jpg/dsh-qqbot.git
cd dsh-qqbot
npm install && npm run build
pnpm pack --pack-destination /tmp
npx @deepseek-ai/dsh plugin --profile web add /tmp/zaofan-dsh-qqbot-0.4.0.tgz

💡 Why a tarball instead of add <source dir>? Lessons from real installs: ① a directory path containing spaces gets split at the spaces on Windows (pnpm reports - isn't supported); ② add <dir> becomes a pnpm link (junction), so the plugin can't locate the profile by its code location, and scanned credentials cannot be persisted (env-var-only fallback).

Troubleshooting: npm install fails with ERESOLVE (backported from upstream PR #42)

A fresh npm install may fail with ERESOLVE could not resolve. Cause: peer deps like @deepseek-ai/dsh-tools / dsh-agent are still on prerelease (-rc) version lines, and npm 7+ strict resolution rejects non-intersecting combinations. This is an upstream version-line issue, not a plugin bug. Two workarounds:

npm install --legacy-peer-deps     # install-time resolution only; runtime behavior unchanged
# or: install deps, then build & pack manually (peers are resolved by the dsh host)

Tracked: once upstream #37 is fixed and version lines converge, this section can be removed.

First launch & binding

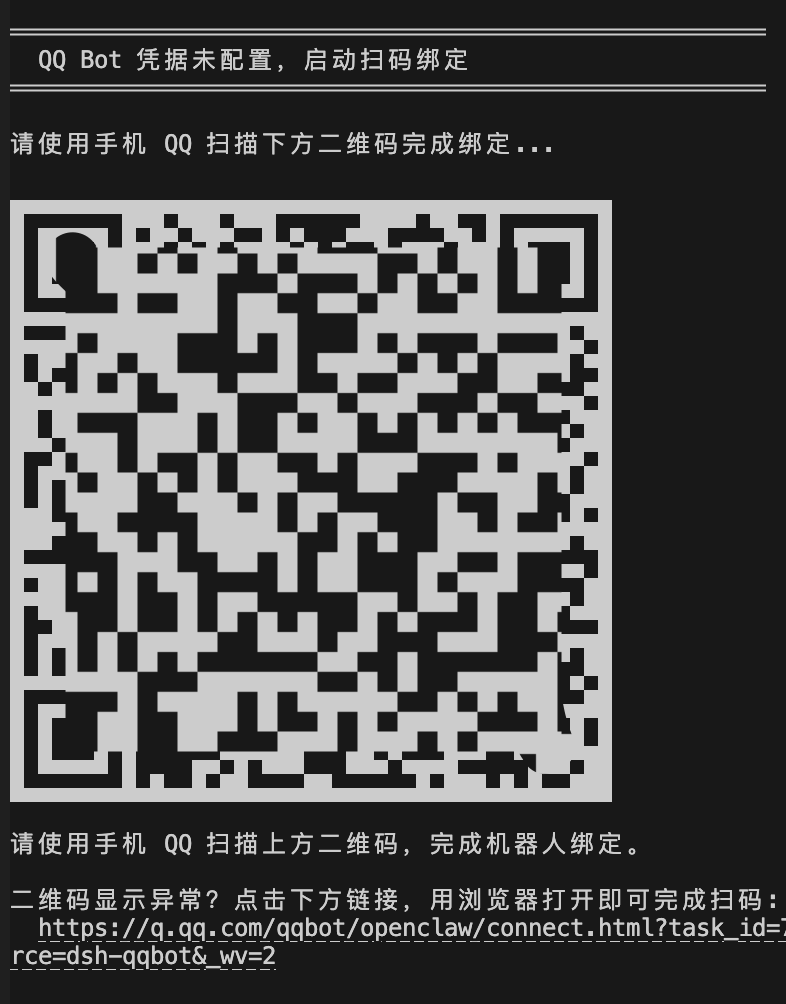

Start dsh web. If credentials are missing, the QR flow starts automatically: a QR code is printed in the terminal → scan it with the QQ mobile app → credentials are saved and survive restarts (you can also use "QR bind" / edit accounts in the settings panel at any time).

Note: Use 0.4.0 or later for browser-link scanning, which avoids QR code misalignment in some terminals.

Don't have a QQ bot yet? Register one (get AppID / AppSecret)

1. Open the QQ Open Platform and sign in with your QQ account;
2. Go to "Bot" → "Create Bot" and fill in name, avatar and description;
3. After creation, copy the AppID and AppSecret from the bot detail page;
4. Enter them in dsh Web → Settings → "QQ bot" → "Accounts & presets" and save (or set env vars QQBOT_APPID / QQBOT_SECRET);
5. Enable the needed single-chat / group-chat message permissions on the platform (group chat usually requires a use-case review).

💡 Easier: once the bot exists, just use the QR scan bind on first launch — no need to type credentials.

For developers: --patch dev mode

export QQBOT_APPID="yourAppID" QQBOT_SECRET="yourAppSecret"
npx @deepseek-ai/dsh web --patch /path/to/dsh-qqbot/cordis.dev.yml

Remote approval over QQ (optional)

When an Agent tool needs access outside the workspace, dsh raises a permission request. With this feature on, the bot forwards the request to the QQ conversation of the task's initiator, and you allow/deny right from QQ:

⚠️ DSH permission request Tool: pwsh Reason: needs access outside the workspace

Allow this operation: /approve A1B2C3 Deny this operation: /deny A1B2C3 One-time only; auto-denied after 120 s.

Enable (either way; takes effect for new requests right after saving, no restart needed):

• Web settings panel: Settings → "QQ bot" → ⑤ QQ remote approval → tick it on;
• or add two lines to the instance config in cordis.patch.yml, then restart:

- id: im-qqbot
  config:
    enableApprovals: true          # default false
    approvalTimeoutMs: 120000      # wait window; auto-deny on timeout

Security boundaries: one-time code; only the initiator in the same conversation may decide (others in a group chat cannot approve even if they see the code); grants only the current operation; auto-cancelled when the agent is cancelled or dsh exits.

Idea source: QQ-approval design of wang-22-code/dsh-qqbot-bridge (host dsh approval/request standard event — the same wiring used by official dsh-acp and the Web approval dialog).

Configuration

Config	Type	Default	Description
appId	string	required	QQ Bot AppID (or via QQBOT_APPID env var)
appSecret	string	required	QQ Bot AppSecret (or via QQBOT_SECRET env var)
provider	string	deepseek-official	LLM provider name
model	string	deepseek-chat	Model name
preset	string	-	Agent preset id
cwd	string	process.cwd()	Agent working directory
requireMention	boolean	true	Whether group messages require @bot to trigger
groupPrompt	string	-	Extra system prompt for group chats
directPrompt	string	-	Extra system prompt for direct chats
textChunkLimit	number	4500	Max chars per message
sessionIdleTimeout	number	1800000	Session idle timeout (ms), default 30 min
debug	boolean	false	Debug mode

Built-in Commands

Command	Description
/bot-reset	Reset the current session (clear context)
/bot-model	View or switch model
/bot-status	View current session status
/bot-restart	Self-restart the dsh host (~4s, auto relaunch)
/botplay	List assembled interactive events; /botplay <name> triggers a keyboard card
/bot-help	View all commands

User Extensions (custom slash commands / QQ tools) (v0.9.8+)

Extensions live under the account workspace (never inside the plugin package), so upgrading the plugin never overwrites them.

.qqbot-extensions/
├── commands/    # custom slash commands (take effect after /bot-restart)
└── tools/       # custom QQ tools callable by the AI (hot-reload via /tools-reload)

Slash command (.qqbot-extensions/commands/hello.mjs):

export default {
  name: ['hello', '你好'],
  description: 'say hi',
  handler: (ctx) => `👋 hi ${ctx.command.raw || ''}`.trim(),
};

QQ tool (.qqbot-extensions/tools/roll_dice.mjs):

export default {
  name: 'roll_dice',
  description: 'roll an N-sided die',
  inputSchema: { sides: { type: 'integer', description: 'sides, default 6' } }, // optional params: no `required` key
  run: async (args, env) => ({ ok: true, msg: `🎲 ${1 + Math.floor(Math.random() * 6)}` }),
};

Then run /tools-reload (or ask the AI to call the tools_reload tool). Commands need a host restart.

For AI agents — you can write these yourself (no feature request needed):

• Card bodies are plain markdown you write (#, bold, ![alt](url), fenced code). This plugin has no template engine — the model is the engine. Cards with buttons go through a botplay event or the dock card editor (button callbacks must be registered host-side).
• Extensions live in the account data directory (.qqbot-extensions/), never inside the plugin package → upgrading or reinstalling the plugin never overwrites them.
• run(args, env) receives env = { cwd, manager, sender, replyTarget, exec }. sender + replyTarget is the very same sender the built-in send_media tool uses, so a tool can post markdown cards / images / voice / files by itself: "fetch an API → build markdown → send" closes the loop inside one tool.
• Tools reply { ok, msg } (fed back to you as the tool result); commands return plain text.
• Hot reload: /tools-reload (or call tools_reload) picks up new tools; editing a tool under the same name is skipped by the registry → rename it or restart the host; commands always need a restart.
• Limitation: extensions cannot register button callbacks — those require a botplay event or the dock card editor. Extension-only flows are "card + user replies a number", with the AI acting as the state machine.
• Example (song request): fetch a search API → build a markdown card (cover / title / artist / lyrics) → sender.sendMarkdown(replyTarget, card) → optionally sender.sendMedia(...) for a preview → return { ok: true, msg: 'card sent' }.
• API reference: when a field/event/error code is unclear, read the official QQ bot api-v2 docs https://bot.q.qq.com/wiki/develop/api-v2/ instead of guessing (button action.type 0=link / 1=callback / 2=command, keyboard 5-row limit, error codes…).

Core Modules

src/
├── index.ts                    # Cordis plugin entry (async apply)
├── config.ts                   # Config schema
├── types.ts                    # Global types
├── setup.ts                    # Credential binding (QR)
├── transport/                  # Transport layer
│   ├── inbound.ts              # QQ inbound message → agent.followup()
│   ├── outbound.ts             # session/event → QQ sendMarkdown
│   ├── outbound-buffer.ts      # Streaming buffer
│   └── chunker.ts              # Markdown chunking
├── session/                    # Session management
│   ├── session-manager.ts      # QQ peer → Agent mapping
│   └── idle-evictor.ts         # Idle eviction
├── model/                      # Model routing
│   ├── model-resolver.ts       # Route resolution
│   ├── prefs-store.ts          # Per-peer preference persistence
│   └── settings-reader.ts      # settings.yaml read-only
├── shared/                     # Shared utilities
│   ├── utils.ts                # Common helpers
│   ├── scope.ts                # scope/peer extraction
│   └── send-helper.ts          # Chunked send
├── commands/                   # Slash commands
└── typings/                    # External module declarations

Session Routing

sessionKey: qqbot:${appId}:${scope}:${peerId}, with the SessionId derived deterministically via SHA-256 so sessions survive restarts.

Resolution strategy: in-process reuse → persisted resume → fresh create.

Design Principles

• Pure Cordis plugin — follows the dsh "Plugins, not loop changes" principle
• Declarative dependencies — inject = ['agents'], no direct coupling to other plugins
• Session isolation — one independent Agent per QQ direct user / group
• Preset support — mount presets (toolkits, prompts, etc.) via the agent-presets service
• Idle eviction — auto-dispose Agents on timeout to prevent memory leaks
• Markdown output — replies sent as Markdown with code-block/table-aware chunking

Local Development

# Install dependencies
pnpm install

# Build
pnpm build

# Dev mode (watch)
pnpm dev

# Debug via --patch
export QQBOT_APPID="xxx" QQBOT_SECRET="xxx"
npx @deepseek-ai/dsh web --patch /path/to/dsh-qqbot/cordis.dev.yml

License

MIT
