TaoruiLiu19/dsh-gsv

Adds text-to-speech read-aloud to DSH (DeepSeek Harness) — dual-mode: Cloud Quick Mode (Edge, zero install, read as soon as it's added) + Local Pro Mode (GSV-TTS-Lite, voice cloning, fully offline).

中文 README: README.md · Changelog: CHANGELOG_EN.md

---

✨ Features

• 🌐 Cloud Quick Mode (Edge): zero configuration, ready to use — no Python / models / engines needed; 20+ free natural voices (Xiaoxiao, Yunxi, Aria, etc.), online and < 1 s to first audio
• 🖥️ Local Pro Mode (GSV): clone a target voice from a reference audio, fully offline; guided one-step upgrade from Cloud Quick Mode
• 🔊 One-click read-aloud: a 🔊 button next to every assistant message (reasoning content excluded); long replies are split into sentence segments and played progressively, with Pause/Resume/Stop controls, a progress readout, and a highlight on the message being read
• 🔁 Auto-read: automatically reads assistant replies; new replies interrupt the current read by default (barge-in), toggleable in settings
• 🔄 Mode switching: one click in the settings panel between "Quick / Local Pro"; voices and status follow live
• 🎛️ Voice Settings panel: configure everything visually, hot-applied (no restart); preview any voice individually or loop-preview all for comparison
• 🎪 Voice Market: one-click download and injection of voices from the bundled or a custom remote manifest, with preview-before-install and read-only management; bundled trusted sources install without confirmation, remote sources require a second confirmation
• 🚀 One-click engine start/stop & setup: local GSV engine control (model loading ~15–90 s) and auto-install, all from the settings panel / tools
• 🔗 Same-origin audio short links: synthesized audio is saved and served same-origin — no more giant data URLs in the model context

---

🎯 Quick Start (either mode)

What you want	Which mode	How to begin
"I just want it to read as soon as it's installed"	🌐 Quick Mode (Edge)	See "Quick Mode (Edge)" below — no installation needed
"I want to clone my own voice / be fully offline"	🖥️ Local Pro Mode (GSV)	See "Local Pro Mode (GSV)" below

Default mode: fresh installs default to Edge Quick Mode (works online); existing users upgrading keep GSV local mode with voices unchanged, and can switch anytime in the settings panel.

1. Quick Mode (Edge, default for new installs)

1. Install the plugin and restart DSH (see "📦 Installation")
2. Open Settings → Voice Settings → TTS Mode → select Quick (Edge)
3. Pick a cloud voice from the "Voice" dropdown (Xiaoxiao / Yunxi / Aria…)
4. Click the 🔊 next to any assistant message — audio plays immediately, < 1 s

No Python, no models, no engine to start. Only a network connection is required. Cloud voices are marked 🌐, giving you a zero-config path to listening right away.

2. Local Pro Mode (GSV)

1. Install the plugin and restart DSH (see "📦 Installation")
2. Open Settings → Voice Settings → TTS Mode → select Local Pro (GSV)
3. Install the engine: have the agent call tts_setup_engine, or see "🔧 Installing the GSV-TTS-Lite Engine"
4. Start the engine: toggle "Start engine" on and wait until it shows "Running"
5. Add a voice: add one under "Voice presets", or one-click download from the "🎪 Voice Market", or clone one
6. Click the 🔊 next to any assistant message, or have the agent call tts_speak

Local Pro mode runs fully offline and supports voice cloning — independent of network and cloud quotas.

📦 Installation

Choose one of the two methods, then enable it in Settings:

# Option 1: Install from npm
dsh plugin --profile web add dsh-gsv-tts

# Option 2: Install from GitHub
dsh plugin --profile web add "github:TaoruiLiu19/dsh-gsv"

About profiles: the commands above use the web profile as an example. Desktop users typically use the desktop profile — just replace web with desktop.

After installing, restart DSH. The tools register automatically and a "Voice Settings" item appears in Settings.

Requires the DSH webServer service (bundled with the Web/Desktop profiles) for audio delivery and the settings service for the settings panel. Environments without these services keep only the tool capabilities.

🔄 Mode Switching & Migration

Item	Description
How to switch	Settings → Voice Settings → TTS Mode (Quick / Local Pro), applied instantly
Config field	provider: 'edge' | 'gsv' (assigned at init; switch from the settings panel rather than editing manually)
Existing users upgrading	Old config with no provider field → stays gsv local mode, voices unchanged
Fresh installs	Default to edge cloud Quick mode, ready online
schemaVersion	Config schema version — the migration guard marker

Edge mode needs network; if the cloud is unavailable, the panel shows "cloud channel busy / temporarily unavailable", and local GSV mode is always available as a fallback.

---

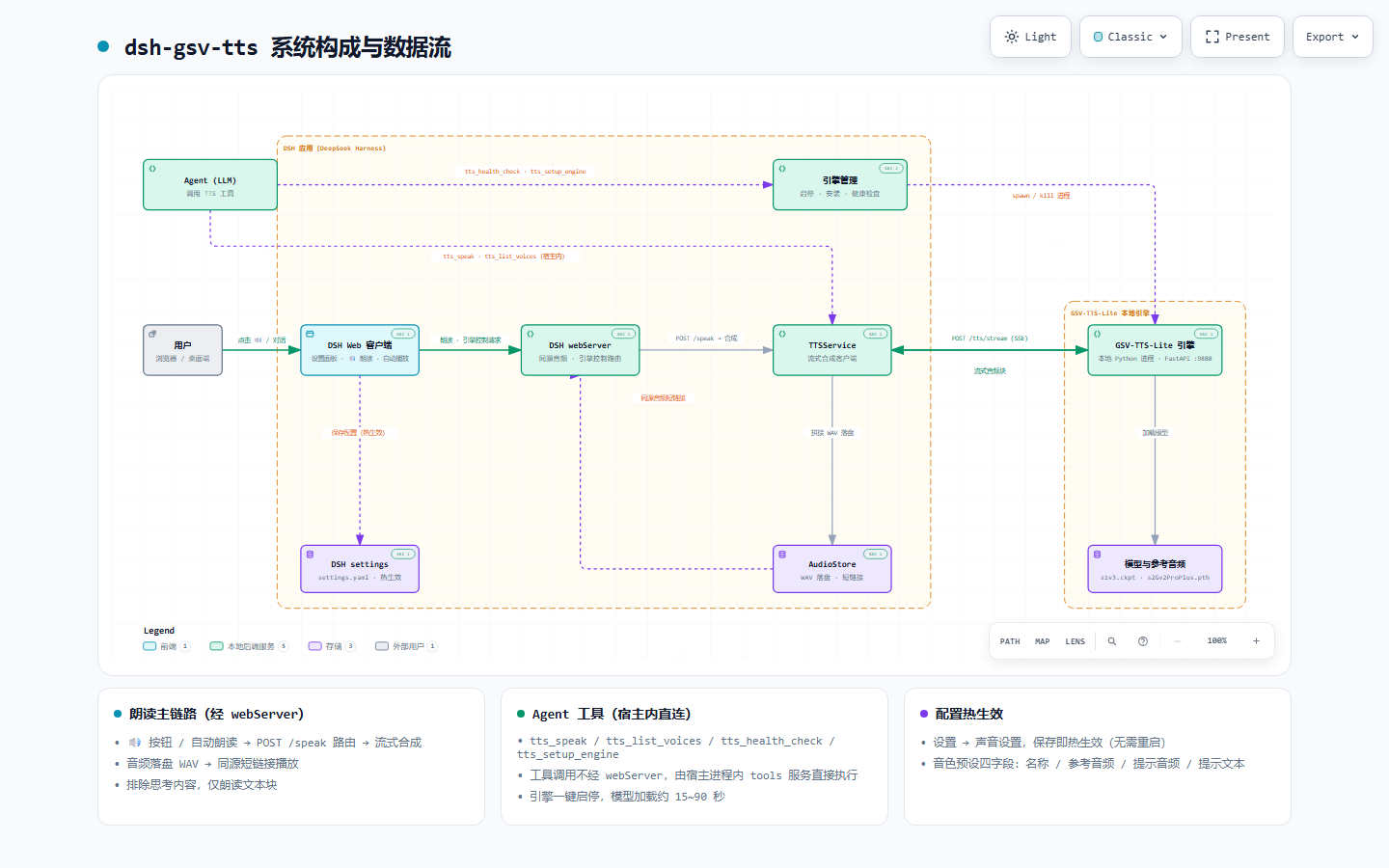

🏗️ Architecture

📖 Interactive diagram: open dsh-gsv-tts.architecture.html (zoom, focus, theme switching)

Dual-provider architecture: TTSService dispatches to the cloud (Edge) or local (GSV) provider by config.provider; the read-aloud main path and the tool-call path are identical for both providers.

• 🔊 Read-aloud path (via webServer): user clicks 🔊 → DSH Web client → the webServer /speak route → TTSService requests via the active provider → cloud/local engine returns audio chunks → AudioStore saves them → a same-origin short link is returned to the browser for playback.
• 🤖 Agent tool calls (in-process, direct): when the agent calls tts_speak and friends, the host's in-process tools service executes the plugin logic directly — no webServer HTTP gateway involved.

Part	Description
DSH app (DeepSeek Harness)	Plugin host: Web client, webServer, settings service
dsh-gsv-tts plugin	TTSService (provider dispatch) / AudioStore (storage) / engine manager (start-stop · setup · health check)
Edge provider	edge-tts-universal, curated Microsoft web voices, returns an MP3 stream (decoded by the browser)
GSV-TTS-Lite local engine	Local Python process, FastAPI :9880, true streaming /tts/stream, returns WAV

📸 Screenshots

Settings → Voice Settings: TTS mode, engine switch, voice config, health status

The 🔊 read-aloud button in the message action row (tooltip "Read result")

The "Running" state after the local engine starts

---

🌐 Quick Mode (Edge) in detail

• Voices: 20+ curated Microsoft natural voices (Chinese Xiaoxiao / Yunxi / Yunye, etc.; English Aria and friends), pick from the panel dropdown — no configuration.
• Output: MP3 audio stream generated by edge-tts-universal, saved by AudioStore as .mp3 and served same-origin; the browser decodes it directly (zero transcoding overhead).
• Health check: built-in connection timeout, automatic token refresh and error recovery; the panel shows cloud availability.
• Rate limit & fallback: Microsoft may rate-limit heavy usage. If the cloud is detected unavailable, the panel guides you to switch to local GSV (unlimited + cloneable).
• Quota field: quotaDaily (default null = unlimited) is a reserved guidance field; hard quotas come in a later release.

🖥️ Local Pro Mode (GSV) in detail

• Capability: clone a target voice from a reference audio; fully offline — data never leaves the machine.
• Cost: requires a Python environment + model download; first model load takes ~15–90 s.
• Entry points: see "🔧 Installing the GSV-TTS-Lite Engine" and "🎙️ Adding a Voice / Voice Market".

---

🔧 Installing the GSV-TTS-Lite Engine

Option 1: Automatic (recommended)

Ask the agent to call tts_setup_engine. It automatically: detects Python → installs gsv-tts-lite==0.4.7 → clones the repo → installs dependencies → deploys the streaming API → starts the service.

Option 2: Manual

1. Install Python 3.10+ (3.12 recommended) with pip available
2. Install the core package: pip install gsv-tts-lite==0.4.7
3. Clone the repo: git clone https://github.com/chinokikiss/GSV-TTS-Lite.git
4. Install API dependencies: pip install -r <repo>/API/requirements.txt
5. Copy dsh_stream_api.py from this plugin's scripts/ folder into <repo>/API/ (true streaming API)
6. Download the models (s1v3.ckpt, s2Gv2ProPlus.pth, ...) into <repo>/models/
7. Start: python <repo>/API/dsh_stream_api.py -p 9880 --models_dir <repo>/models
8. In Settings → Voice Settings, toggle the engine on to verify

Example audio lives in <repo>/examples/ (laffey.mp3, AnAn.ogg) — usable as test voices.

🎪 Voice Market

Download and inject voices from the Voice Market in one click — no need to fill in reference audio paths manually.

🌐 Online audition site: https://taoruiliu19.github.io/gsv-market/ — browse, preview, and download every voice in the market without installing the plugin.

1. Open Settings → Voice Settings → Voice Market
2. Browse the voice cards (source, author, license); click Preview to listen
3. Click Install:
   • Bundled trusted manifest (trusted) → installs directly
   • Custom remote manifest (voiceRegistryUrl) → second confirmation of source & license before installing
4. Installed voices are added to "Voice presets" and can be used from 🔊 / tts_speak
5. Market-installed voices are read-only in the panel (uninstall only) to keep the id ledger intact; Uninstall can (with a prompt) also delete the local audio files

Trust rule (A+ hybrid): voices listed in the bundled docs/voices.json are always treated as trusted (audited at release), even when displayed via the remote manifest — no confirmation needed. New voices only in the remote manifest (not bundled) always require a second confirmation. Merge is keyed by id: bundled voices take priority, remote only supplements new ids. For custom voices, add them manually under "Voice presets".

🎙️ Adding a Voice (local GSV)

1. Open Settings → Voice Settings
2. Under "Voice presets", click "Add voice"
3. Fill in the four fields:

Field	Description	Example
Voice name	Voice identifier used by tts_speak and the 🔊 button	Laffey
Speaker audio path	Reference audio of the target voice (defines who it sounds like)	D:\GSV\GSV-TTS-Lite\examples\laffey.mp3
Prompt audio path	Intonation/emotion reference audio	D:\GSV\GSV-TTS-Lite\examples\AnAn.ogg
Prompt text	The text of the prompt audio (required — the engine has no ASR fallback)	ちが……ちがう。レイア、貴様は間違っている。

4. Click "Save" — changes apply instantly, no restart
5. Leave the default voice empty to use the first voice in the list

Reference audio paths must be local paths accessible from the engine host or reachable URLs.

⚙️ Voice Settings Reference

Field	Description	Default
TTS Mode	Quick (Edge cloud, zero setup) / Local Pro (GSV, offline & cloning)	existing users gsv / fresh installs edge
Engine switch	Start/stop the GSV-TTS-Lite engine process	Off
apiUrl	Engine API URL	http://localhost:9880
defaultVoice	Default voice (gsv=preset name / edge=cloud voice id; empty = first)	empty
timeout	Request timeout (ms)	30000
installDir	Engine install directory	./GSV-TTS-Lite
autoPlay	Auto-read assistant replies	false
interruptOnNew	Whether new replies interrupt the current read in auto-read mode (off = skip new replies while reading to avoid overlap)	true
voiceRegistryUrl	Remote voice-market manifest URL (defaults to the online audition site; empty = bundled offline only)	site URL
provider	gsv | edge (assigned at init; switch in the settings panel)	see "TTS Mode"
schemaVersion	Config schema version (migration guard marker)	1
quotaDaily	Daily quota for cloud simple mode (null = unlimited; guidance only)	null
voices	Voice preset list	empty

Config is stored in DSH settings (the dsh-gsv-tts: section of ~/.dsh/settings.yaml) and hot-applied on change.

🧰 Tools

Tool	Purpose
tts_speak	Text-to-speech; uses the active provider & voice, streams, returns a same-origin short link
tts_list_voices	List voices available for the active provider
tts_health_check	Check the active provider (engine/cloud) status
tts_setup_engine	One-click GSV-TTS-Lite engine installation

❓ FAQ

• How do I hear audio right away?: Edge mode is the default — no installation at all; just pick a voice in the settings panel. Only Local Pro needs the engine installed.
• Engine not running (Local Pro): Settings → Voice Settings → toggle on (model loading takes ~15–90 s)
• Models missing: the first start will warn; put the models into the models directory
• The read button says "TTS engine not started": if you're on local GSV, start the engine in Voice Settings first; if you don't want an engine, switch back to Edge Quick mode
• Some cloud voices won't read?: make sure the network is up; when the cloud channel is limited, switch to local GSV
• Reference audio unavailable: use a local path accessible from the engine host or a reachable URL

🛠️ Tech Stack

• DSH plugin framework: Cordis + @deepseek-ai/dsh-tools
• Config schema: @deepseek-ai/schemastery
• Settings panel: @deepseek-ai/dsh-settings + client settings.section slots
• Cloud provider: edge-tts-universal (Microsoft web voices, MP3 stream)
• Local engine: GSV-TTS-Lite 0.4.7
• Languages: TypeScript (host) / hand-written client bundle (browser) / Python (streaming API)

📦 Build & Publish

pnpm install
pnpm build        # compile host code (lib/)
pnpm publish      # publish to npm (files: lib, scripts, cordis.patch.yml)

Installing from GitHub runs the prepare script automatically; lib/client.js is a hand-written client bundle shipped with the repo.

See docs/PUBLISHING.md for publishing details.

📜 Changelog

Full release history: CHANGELOG_EN.md.

⚠️ Known Limitations

• Playback is a clickable markdown link; inline <audio> playback needs a client extension (planned)
• Generated audio lives in the system temp dir (%TEMP%/dsh-gsv-tts), purged on startup, capped at 200 files per session
• Edge cloud mode depends on network; when Microsoft rate-limits, it may be unavailable (already has a downgrade guide)
• tts_setup_engine shells out to pip/git; those tools must be available
• Empty promptText relies on the engine's ASR capability (capability-probed); synthesis fails with a clear error when unsupported

📄 License

This project is open-sourced under the MIT license.

Copyright (c) 2026 TaoruiLiu19. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files, to deal in the Software without restriction, subject to the inclusion of the above copyright notice and this permission notice in all copies or substantial portions of the Software.

The Software is provided "AS IS", without warranty of any kind, express or implied. See the LICENSE file for the full terms.
