wangzhishou/onebox-dsh-bridge

English | 简体中文

A DeepSeek Harness (dsh) plugin that bridges your local dsh web to the OneBox cloud relay, so the OneBox Android app can reach your computer's AI agent over the public internet — scan-to-pair, token management and tunnel frame multiplexing, all inside the plugin. Your agent is online as soon as dsh web starts.

Built for the open-source OneBox (万宝盒) Android app. The plugin page also includes the app download info, so anyone running DSH can pair their phone in a minute.

How it works

OneBox App ⇅ https://api.wanbaohe.com/dsh/* (CN relay) or https://api.oneboxable.com/dsh/* (international relay)
                 ⇅ outbound WSS (control tunnel, JSON frame multiplexing)
         onebox-dsh-bridge (this plugin)
                 ⇅ loopback
         local dsh web (127.0.0.1:3080)

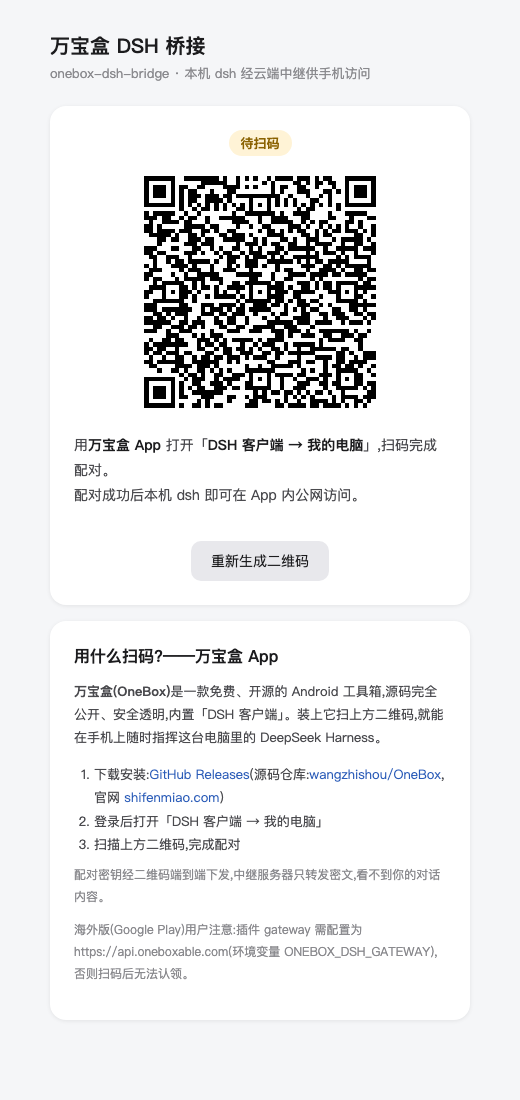

• Mounts a /onebox-bridge page in the dsh web GUI (self-contained HTML, zero external deps) showing the pairing QR code and online status
• Pairing: POST /dsh/pair-sessions → a ≥128-bit secret is generated locally and encoded into the QR (oneboxdsh://pair?v=1&g=…&p=…&s=…) → polls GET /dsh/pair-sessions/:id/status?s=… every 2s; once the app scans and claims, the plugin receives its device token
• Goes online via outbound WSS /dsh/agent?token=…; tunnel frames: http → local POST /api/<method> answered by http-resp; ws-open/ws-frame/ws-close bridge the local /api/events.mux|host streams
• Control WS drop → all local bridges closed, exponential-backoff reconnect (1s→30s); token 401 (revoked/expired) → local token deleted, back to scan-to-pair state
• End-to-end encryption: the pairing key travels only inside the QR code, never through the server; all app ↔ computer traffic is AES-256-GCM encrypted — the relay forwards ciphertext only

Install

With the dsh CLI installed:

dsh plugin --profile web add onebox-dsh-bridge

Running dsh from a source checkout (prefix commands with pnpm dsh, from the deepseek-harness repo root):

pnpm dsh plugin --profile web add onebox-dsh-bridge

The package declares dsh.bundle, so add automatically merges the plugin row into the profile's composition layer. Restart dsh web to take effect.

Compatibility: the bridge itself is protocol-agnostic — it forwards /api/<method> over HTTP and tunnels WebSocket frames verbatim, so it does not hard-code DSH endpoint names. Verified against dsh 0.1.5-rc.2 (npm next) for the pairing page, status API, QR pair-session creation, and the tunnelled /api/remote.mux WebSocket. Older releases (0.1.0-rc.7 / 0.1.0-rc.8, which used /api/events.mux and /api/events.host) still tunnel fine, but the app requires dsh 0.1.2 or newer — see the compatibility note in the OneBox DSH client. The plugin must live in the web profile (it injects the webServer service that only the web composition provides).

dsh 0.1.5 and browser authentication

Since dsh 0.1.5 every /api request — including the /api/remote.mux WebSocket upgrade — goes through the connection browser-trust fence and browser authentication: loopback is not exempt, Authorization: Bearer is not recognised, and --trusted-host only widens the Host fence (403), not the auth one (401). The plugin therefore mints the local session cookie through ctx.connection.authenticatedUrl (lib/session-cookie.js), attaches it to every tunneled HTTP call and WS upgrade, and re-mints once on 401.

Local integration testing (LAN, no relay needed)

To try the Android app against your machine without deploying the relay, run the LAN proxy — it injects the same session cookie and rewrites Host, so the app's "direct connect" mode works on a phone in the same LAN:

# 1) start dsh web and copy the ?token=… from the URL it prints
# 2) from this repo:
node tools/lan-proxy.mjs --token <token> --port 3081
# 3) in the app: DSH Client → direct connect → http://<your-LAN-IP>:3081

It exposes your local dsh /api (browser-session privileges) to the LAN, so use it only on a network you trust and stop it (Ctrl-C) when done.

Installing straight from GitHub also works:

dsh plugin --profile web add github:wangzhishou/onebox-dsh-bridge

Usage

1. Open http://127.0.0.1:3080/onebox-bridge in dsh web (adjust the port to your deployment)
2. In the OneBox app, open DSH Client → My Computers and scan the QR code matching your app channel (one per gateway: mainland China / international)
3. Once the page shows Online, pick the device in the app and start chatting with your agent

Page buttons: Regenerate QR code (invalidates the old session and creates a new pairing session; codes expire after 10 minutes and are rebuilt automatically) and Unbind & re-pair (deletes the local token, back to waiting-for-scan).

Get the OneBox app

The plugin is the computer-side half; the phone-side half is the free, open-source OneBox Android app:

• Source code: github.com/wangzhishou/OneBox (Apache-2.0)
• International: Google Play · Official site
• 中国用户: 万宝盒官网 · 小米 / 应用宝 / OPPO / vivo / 华为应用商店搜索「万宝盒」

Screenshots

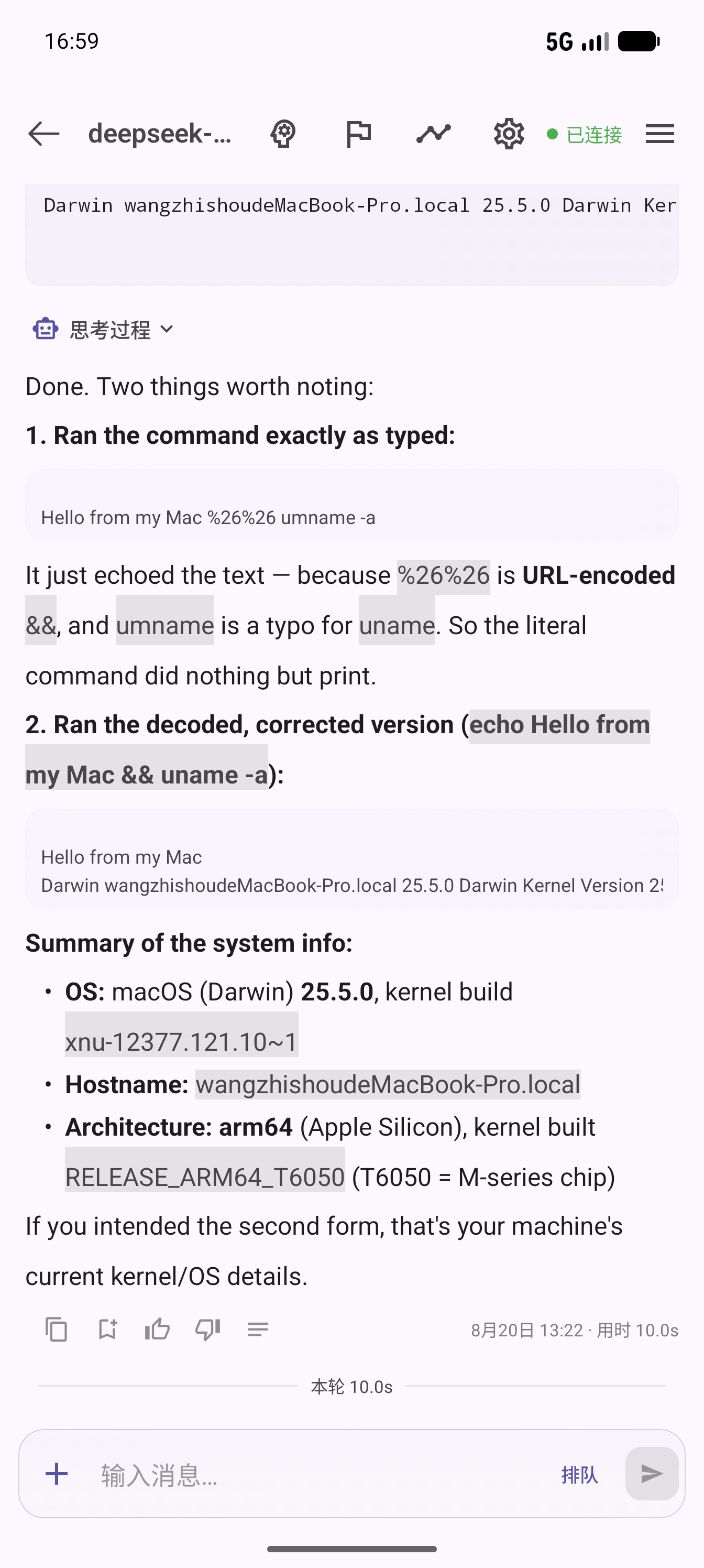

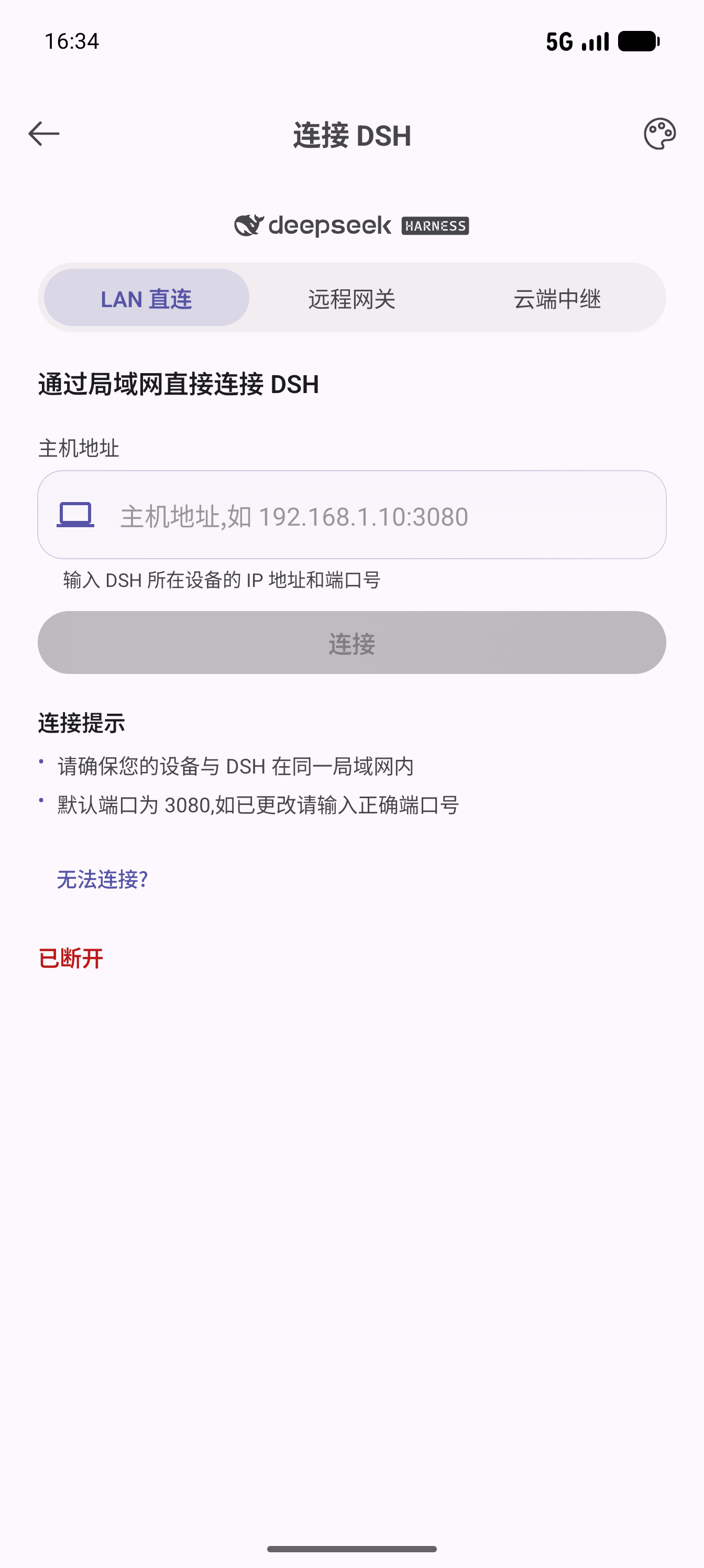

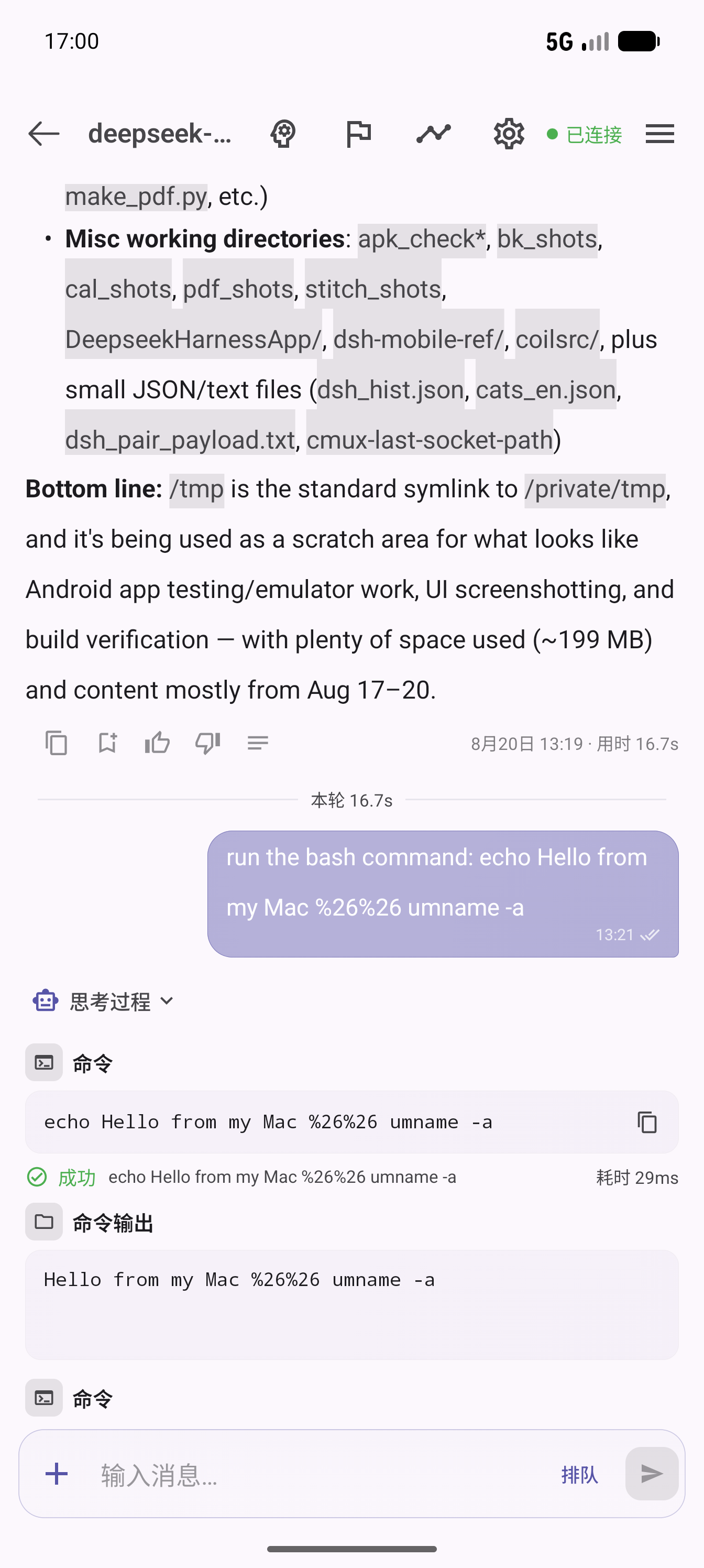

Plugin pairing page	App connect page	App chat control	Feedback & stats

Configuration

All optional. Priority: environment variable > plugin config > default.

Key	Env var	Default	Description
gateways	ONEBOX_DSH_GATEWAYS (comma-separated)	https://api.wanbaohe.com + https://api.oneboxable.com	OneBox gateways. Both deployments are paired at once by default — the page shows one QR per gateway, labeled by app channel, and the first one scanned wins. The app JWT is only valid on its own deployment, so dual pairing saves users from configuring anything
gateway	ONEBOX_DSH_GATEWAY	—	Single-gateway override (equivalent to a one-element gateways list)
upstream	ONEBOX_DSH_UPSTREAM	127.0.0.1:3080	Local dsh address (host:port)
deviceName	—	system hostname	Device name reported to the app during pairing
dataDir	ONEBOX_DSH_DATA_DIR	~/.dsh/profiles/web/onebox-dsh-bridge	Token storage directory (token.json, mode 0600; old tokens are invalidated automatically when their gateway leaves the configured list)

To change config, override the whole row in the profile's ~/.dsh/profiles/web/cordis.patch.yml (a patch replaces the entire config value — list every key):

- id: onebox-dsh-bridge
  name: 'onebox-dsh-bridge'
  config:
    gateways:
      - https://api.wanbaohe.com
      - https://api.oneboxable.com
    upstream: 127.0.0.1:3080
    deviceName: My Mac

Uninstall

dsh plugin --profile web remove onebox-dsh-bridge

Optionally delete the credentials directory ~/.dsh/profiles/web/onebox-dsh-bridge/; paired devices can be revoked in the app under My Computers.

Notes

• The /onebox-bridge page, like dsh web itself, has no extra auth (loopback-only by default); the QR code contains the pairing secret — never expose dsh web directly to the public internet
• Runtime dependencies: just ws + qrcode
