oxlyn/dsh-flyout-sidebar

DeepSeek Harness (DSH) plugin: a flyout sidebar — file tree + Git changed-but-uncommitted files, multi-tab preview of files and diffs, a preview area that covers the whole conversation region, and one-click pop-out to a standalone browser tab you can drag to another monitor.

中文 ｜ EN

Install

From npm (recommended)

dsh plugin --profile web add dsh-flyout-sidebar

From GitHub sources

dsh plugin --profile web add github:oxlyn/dsh-flyout-sidebar

Local install (development)

git clone https://github.com/oxlyn/dsh-flyout-sidebar.git
cd dsh-flyout-sidebar
npm install
npm run build          # tsdown → dist/index.js + dist/client.js

# run from the parent directory (dsh plugin add resolves relative paths against the cwd):
cd ..
dsh plugin --profile web add ./dsh-flyout-sidebar   # symlink install; after editing src/ run npm run build and restart dsh web
dsh web

Verify

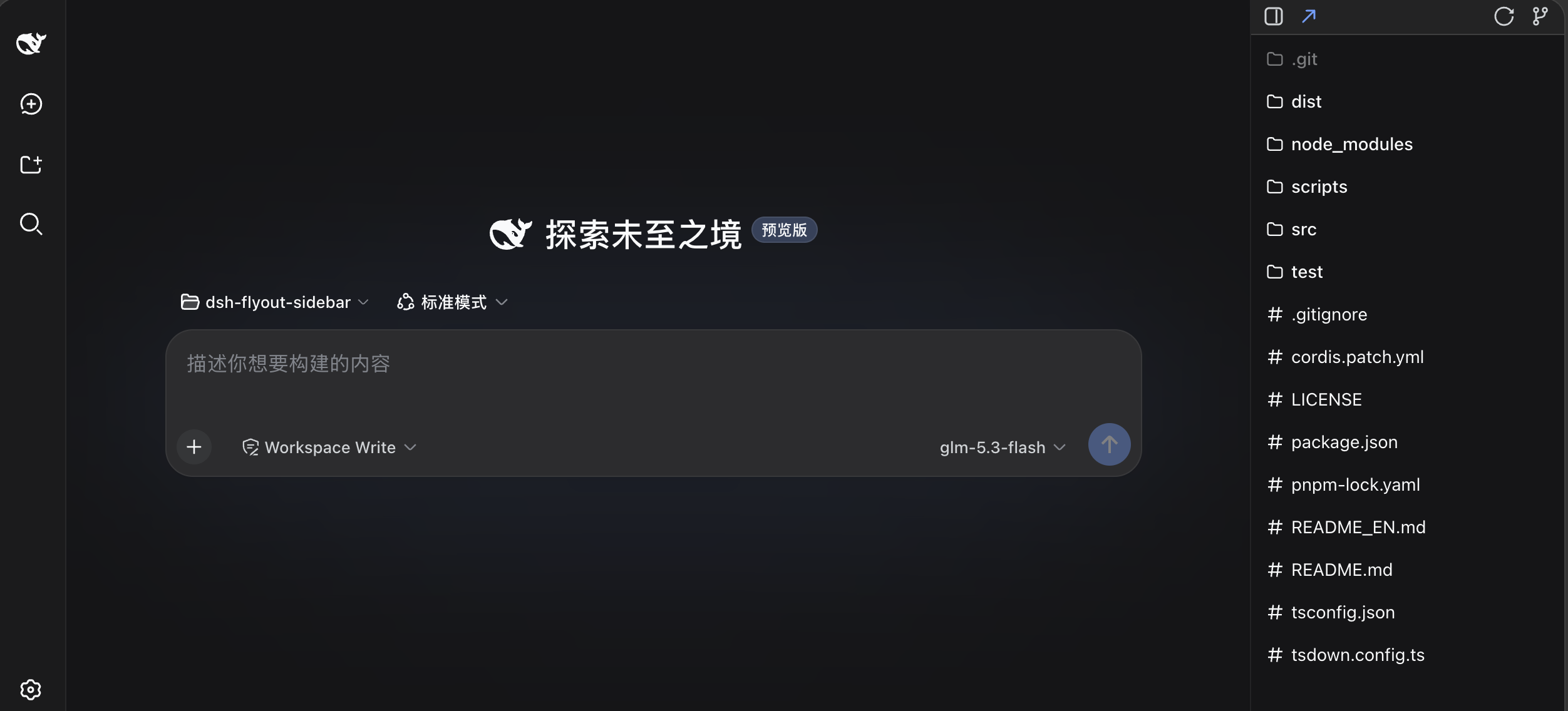

After installing, restart dsh web and hard-refresh the browser (Cmd/Ctrl+Shift+R). A persistent sidebar icon button appears in the top-right corner (visible even with no session). You can also verify the config layer:

dsh --profile web --dump-config | grep dsh-flyout-sidebar   # this line should appear

Highlights

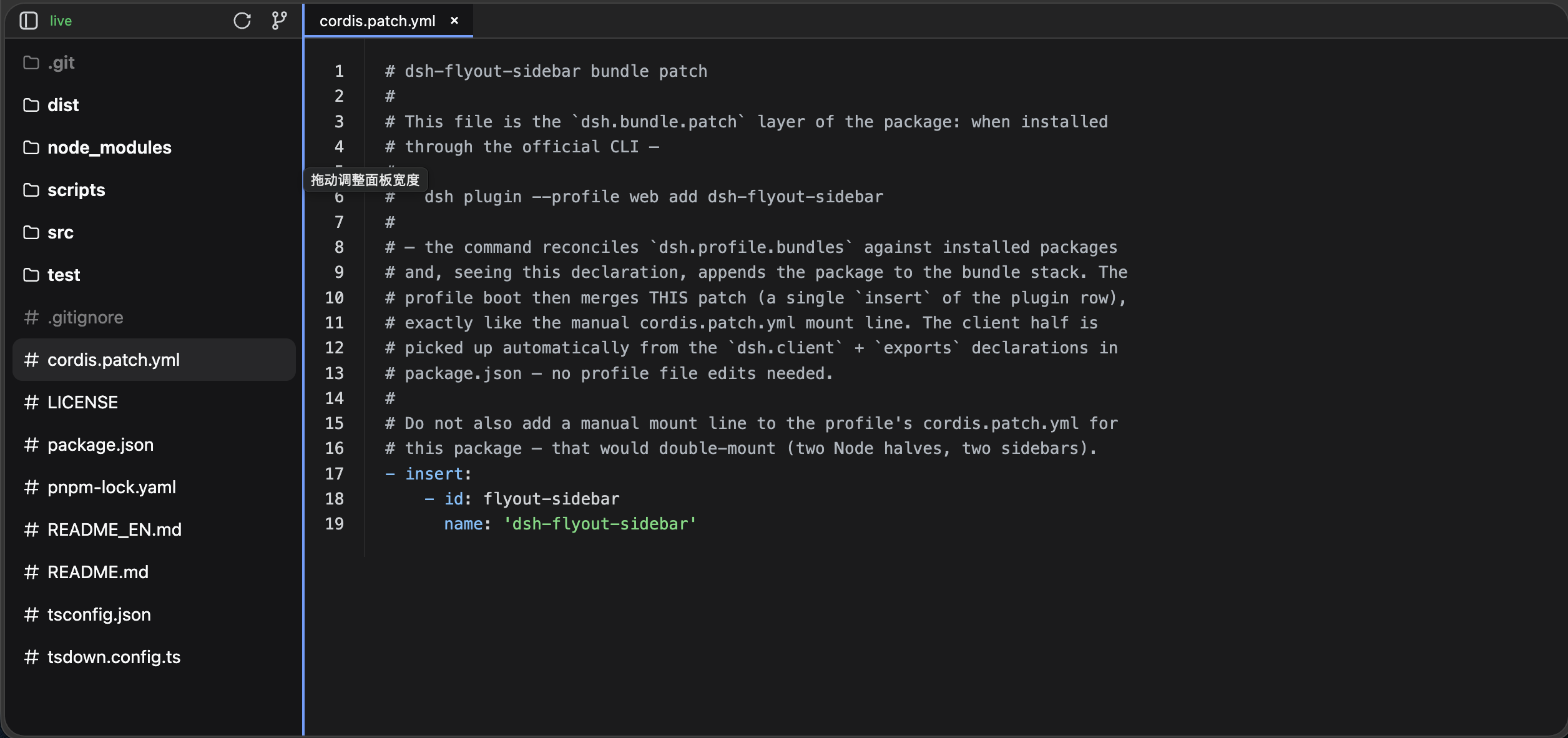

• Pop it out: the ↗ button in the panel header pops the sidebar out to a standalone /flyout-sidebar browser tab — drag it to another monitor and use it as a dedicated file panel while the main screen keeps the conversation unobstructed; the panel and the flyout sync session and theme in real time via localStorage, and the flyout has no title bar so all vertical space goes to content

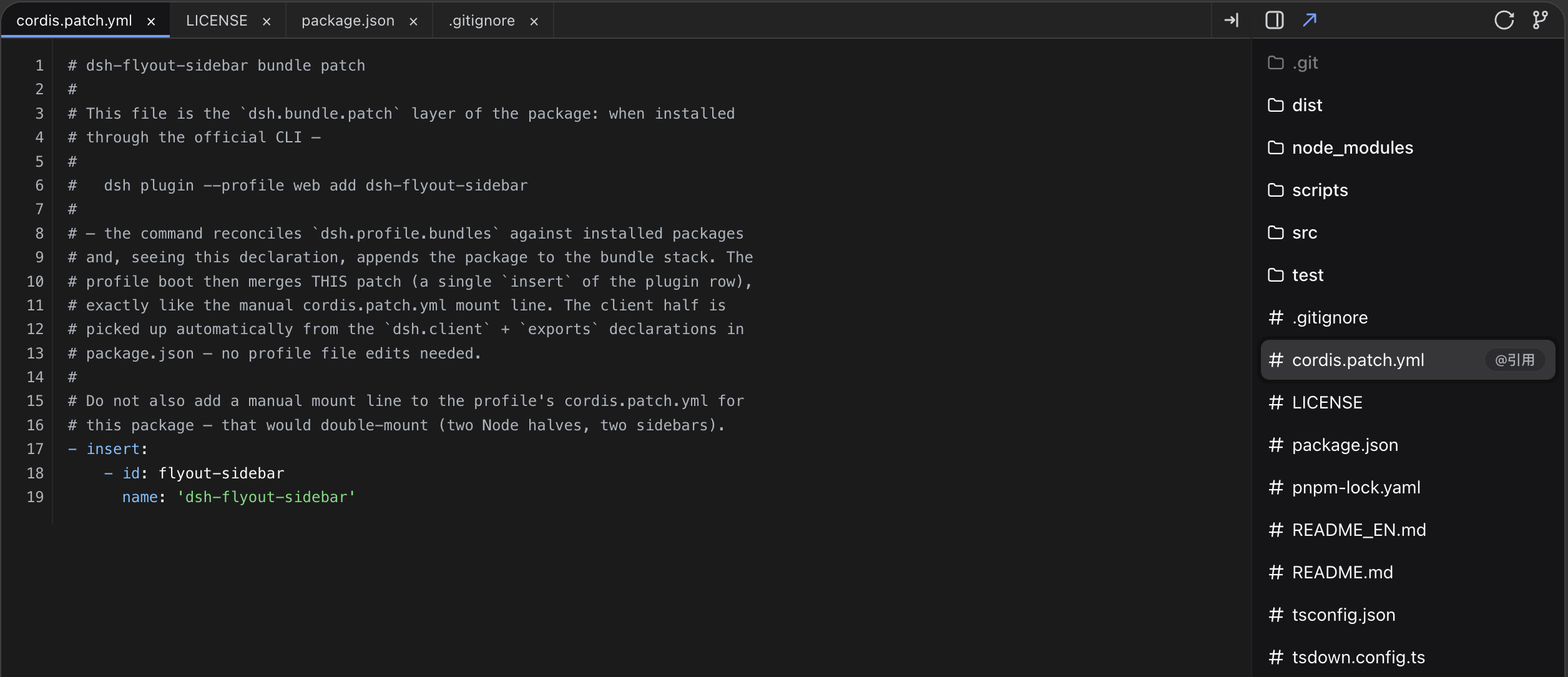

• Large preview area: the preview overlay covers the entire conversation region to the left of the sidebar (not a narrow strip) — code with line numbers + syntax highlighting, long files, large images and PDFs all get plenty of reading width
• Multi-tab preview of files / diffs: open many file tabs at once, or click a Git change to open a colored unified diff; supports code highlighting, Markdown rendering, images, PDF (embedded pdf.js, offline-safe) and sandboxed HTML iframes; ⇥ collapses/restores all tabs at once
• Auto refresh: the Git changes list follows automatically — a 700ms debounce after every agent tool run, 2s polling, and a 15s fallback covering out-of-band IDE edits; the refresh button forces a real fetch with a row-by-row reveal animation

Features

#	Form	Entry	Description
1	File tree view (default)	visible when the panel opens	Browse the current workspace; lazy-expanded directories, directories first; re-roots automatically when the workspace/session switches; a search box at the top filters files by name (instant full-repo search via git ls-files, gitignore-aware)
2	Git changes view	git-branch icon in the panel header	Lists changed-but-uncommitted files (M/A/D/R/U badges, hover for staged/unstaged, renames show the original path, per-file +n −n line stats); clicking a file shows a colored unified diff against HEAD — untracked files get a synthesized new-file diff
3	Multi-tab preview	click a file	The preview overlay covers the entire area left of the sidebar; open many files at once; syntax highlighting by extension, plus Markdown, images, PDF and sandboxed HTML iframes; ⇥ collapses the whole preview (tabs kept, opening a file restores them)
4	Flyout tab	↗ in the panel header	Pops out to /flyout-sidebar, draggable to another monitor; content left / file panel right, one-click side swap, draggable width (defaults to minimum, preference remembered)

More:

• Switching projects/sessions clears all preview tabs automatically, so content never leaks across workspaces
• One-click path copy, or write an @path quote into the session composer, from git change rows and file tree rows
• Both the panel and the flyout tab follow DSH's light/dark theme in real time (the flyout syncs via localStorage, correct on first paint)
• Coexists with other sidebar plugins: it shifts left of other side cards automatically, both stay visible
• The panel opens/closes with a push-pull slide animation; the trigger button slides along with it
• Bilingual UI (Chinese / English): follows the browser language by default, pinnable in settings; the flyout syncs the choice via localStorage
• Code previews support soft wrap (⇋ icon in the preview bar or the setting), horizontal scrolling by default
• Esc exits stepwise: closes the active preview tab first, then collapses the panel; open preview tabs are restored per session after a browser reload (sessionStorage)
• Code previews use the browser's native find (⌘/Ctrl+F); per-line rendering keeps line numbers aligned even with soft wrap
• Image previews support wheel zoom, drag panning and double-click reset
• The external-link icon in the preview bar opens the current file in the system editor/IDE (host side via open/xdg-open/Windows rundll32, path anchored to the workspace)
• Resilient file tree loading: when the workspace is not yet resolvable on the host, it retries with exponential backoff (~9s window), then shows an error with a Retry button; clicking refresh replays the top-down staggered row animation

Settings

A "Flyout Sidebar" tab appears in the DSH settings panel (⚙️ in the bottom-left):

Setting	Default	Description
Default expanded	on	Expand the sidebar on page load; when off it starts collapsed
Auto refresh	on	Poll the latest git status every 2s while the changes view is open
File tree	on	Show the file tree view and the view-toggle icon; when off the panel always shows the Git changes view
Min panel width	20%	Minimum panel width (percent of window width, 20–60%); drag the panel's left edge to widen it
Interface language	auto (browser)	Display language for the sidebar and the flyout page (Chinese / English); the flyout applies it after a reload
Code wrap	off	Soft-wrap long lines in code previews; horizontal scrolling when off (the preview-bar icon toggles it temporarily)

Settings are stored in the browser's localStorage (key dsh-flyout-sidebar:settings); the flyout's panel width / side preferences live in dsh-flyout-sidebar:panelw / panelLeft.

How it works

The plugin splits into a host side and a client side, written in TypeScript + JSX and bundled by tsdown into two single-file bundles:

┌─ host side src/index.ts → dist/index.js (Node process, ESM) ────┐
│  - host/artifacts.ts   artifact tracking (write/edit + shell    │
│                        snapshot diff)                           │
│  - host/git.ts         git status/diff (per-workspace cache)    │
│      git status --porcelain=v1 -z   change list                 │
│      git diff HEAD -M -- <path>     colored unified diff text   │
│  - host/workspace.ts   session → workspace cwd resolution       │
│  - host/files.ts       directory listing / text reading         │
│  - host/page.ts        standalone flyout page HTML (inlines the │
│                        shared modules)                          │
│  - host/routes.ts      ctx.webServer.register:                  │
│      GET /flyout-sidebar/gitstatus  change list JSON (?force)   │
│      GET /flyout-sidebar/gitdiff    per-file diff JSON          │
│      GET /flyout-sidebar/listdir    directory listing           │
│      GET /flyout-sidebar/content    text content (code preview) │
│      GET /flyout-sidebar/search     filename search             │
│      GET /flyout-sidebar/media      images / PDF binary         │
│      (media responses carry CSP sandbox / nosniff to block inline  │
│       SVG XSS; every read path is anchored to the workspace and   │
│       there are no state-mutating routes like /remove)            │
│  - tools/result event → 700ms debounced cache refresh           │
└──────────────────────────────────────────────────────────────────┘
                          │ fetch
┌─ client side src/client/index.tsx → dist/client.js (IIFE) ───────┐
│  - React components (classic JSX via an `h` factory; React is   │
│    provided at runtime by DSH's __ModuleLoader__ factory, the   │
│    bundle does not embed it)                                    │
│  - shell.overlay: persistent top-right icon button + panel      │
│  - file tree ⇄ Git changes views; multi-tab preview overlay     │
│  - settings.section: Flyout Sidebar settings                    │
│  - cross-tab localStorage sync: session id, theme, panel prefs  │
└──────────────────────────────────────────────────────────────────┘

Technical notes: a single tsdown.config.ts bundles both sides (host ESM / client IIFE); a custom ?raw plugin inlines the shared module sources into the flyout page's classic <script> and embeds the vendored pdf.js into the host bundle (fully offline); shared modules shared/ext.js (preview types), shared/highlight.js (zero-dependency syntax highlighter) and shared/markdown.js (Markdown rendering) are portable JS with JSDoc types, reused on both sides and inlined into the flyout page; host dependencies are declared via inject: ['webServer', 'sessionQuery', 'timer'].

Requirements

• Node >=20 (DSH host requirement)
• git on the PATH and a git repository as the workspace (otherwise the Git changes view shows an error; the file tree is unaffected)
• Local builds need the devDependencies (tsdown, typescript, ...; zero runtime dependencies)

Development

npm run build         # tsdown: regenerate dist/index.js and dist/client.js
npm run check         # tsc --noEmit strict type checking
npm test              # node:test smoke tests (host routes/events + client rendering + flyout page + markdown/highlight regression)

Recommended one-time setup of the pre-commit guard: ln -sf ../../scripts/precommit.sh .git/hooks/pre-commit. Every git commit rebuilds the bundles and runs the type check and tests, blocking the commit if the bundles are out of sync or any test fails.

Project structure:

dsh-flyout-sidebar/
├── tsdown.config.ts      # tsdown build: host/client bundles + ?raw inline plugin
├── src/index.ts          # host entry (exports name/inject/apply, ESM)
├── dist/                 # ⚙️ generated: index.js (host) / client.js (browser), do not edit
├── snapshots/            # README screenshots
├── src/shared/           # shared portable modules (JSDoc types, inlined into the flyout page): ext / markdown / highlight
├── src/host/             # host modules: types / artifacts / workspace / files / git / page (flyout HTML) / routes (HTTP)
├── src/client/           # client modules (TSX): jsx (React bridge) / runtime / store / styles / icons / preview / components
├── src/vendor/pdfjs/     # vendored pdf.js (embedded at build time, offline-safe)
├── test/                 # node:test smoke tests (black-box checks against dist)
└── cordis.patch.yml      # bundle mount patch

Updates

dsh plugin --profile web update dsh-flyout-sidebar    # or `add` again

Then restart dsh web and hard-refresh the browser.

If you still get the old version after publishing: the DSH profile's pnpm supply-chain policy minimumReleaseAge (24h by default) holds back freshly published versions. Add this package's name (without a version) to minimumReleaseAgeExclude in the profile's pnpm-workspace.yaml to unlock it immediately.

Links

• LinuxDo

License

MIT
