kelearns/dsh-navigation-bar

A piano-key in-conversation navigation bar for the DeepSeek Harness Web GUI: one key anchors one user message of the current session, hovering shows a "user message + model reply" preview, and clicking smooth-scrolls to that message. Built on the official DSH dual-face plugin mechanism (host + browser half) — no DSH source changes.

中文

Screenshots

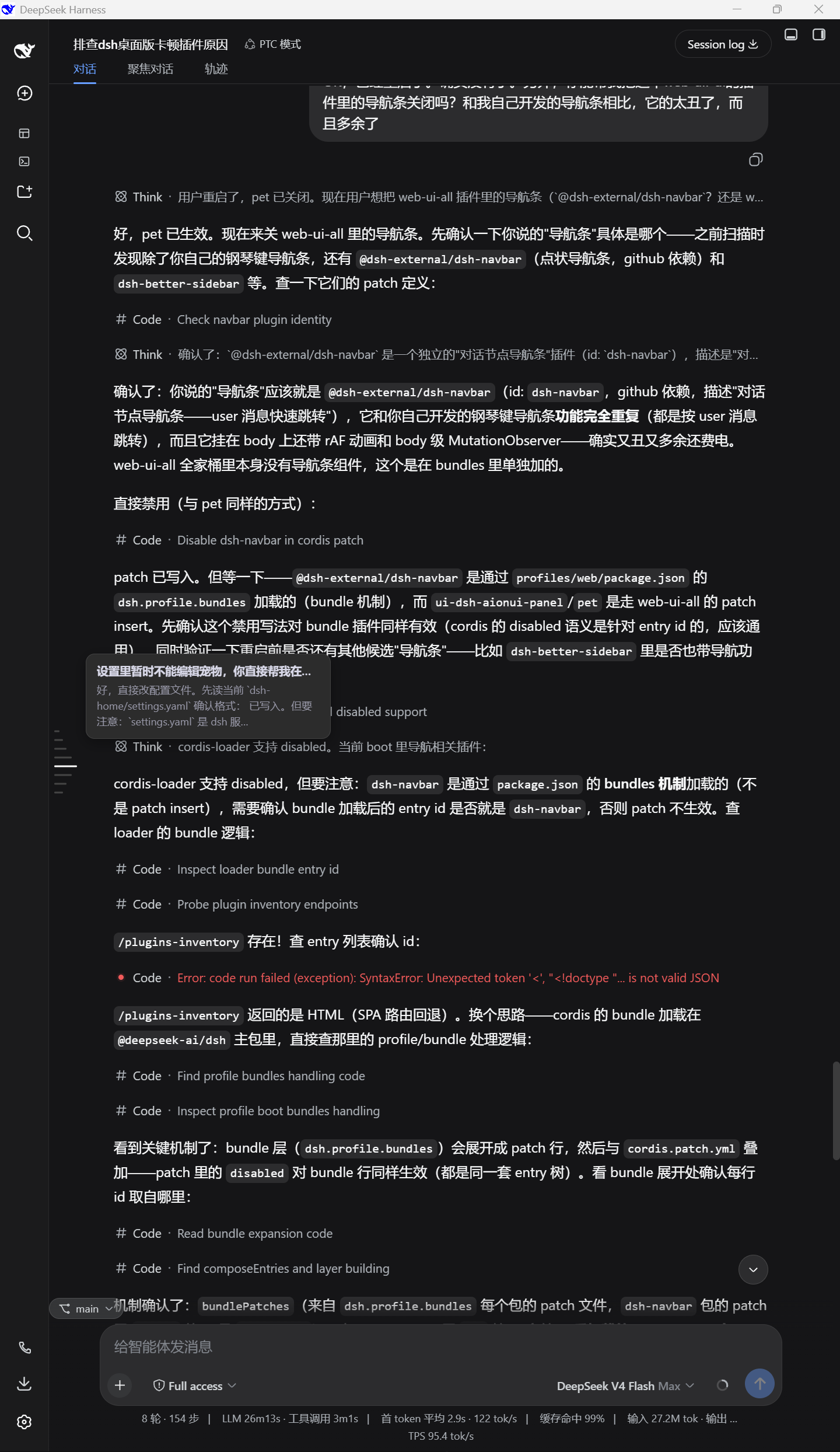

Dark theme · hovered (full view + focused detail):

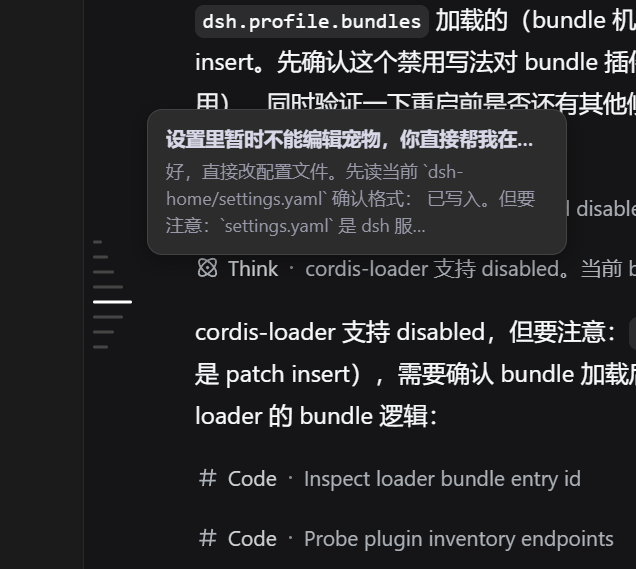

Dark hover focus	Dark idle focus

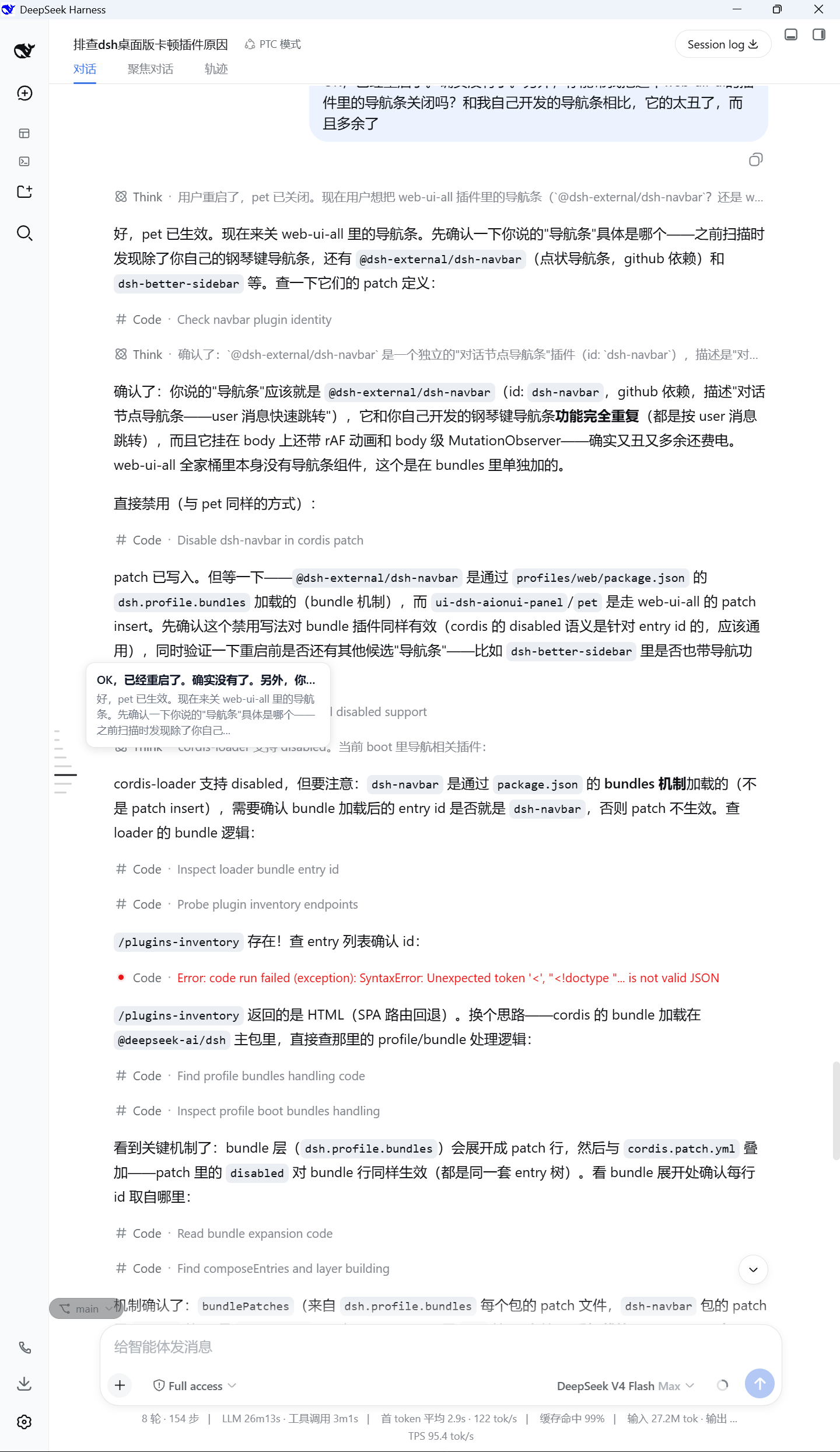

Light theme (hovered / idle full views):

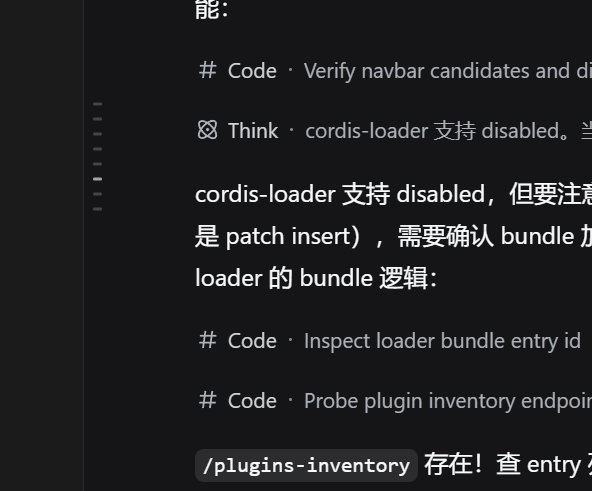

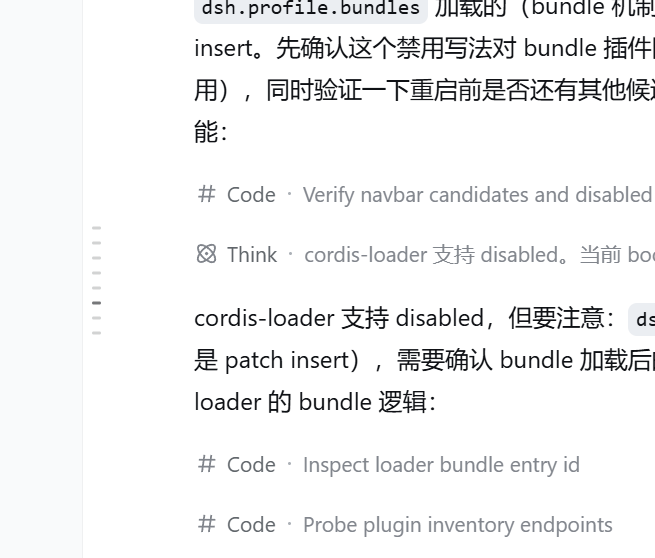

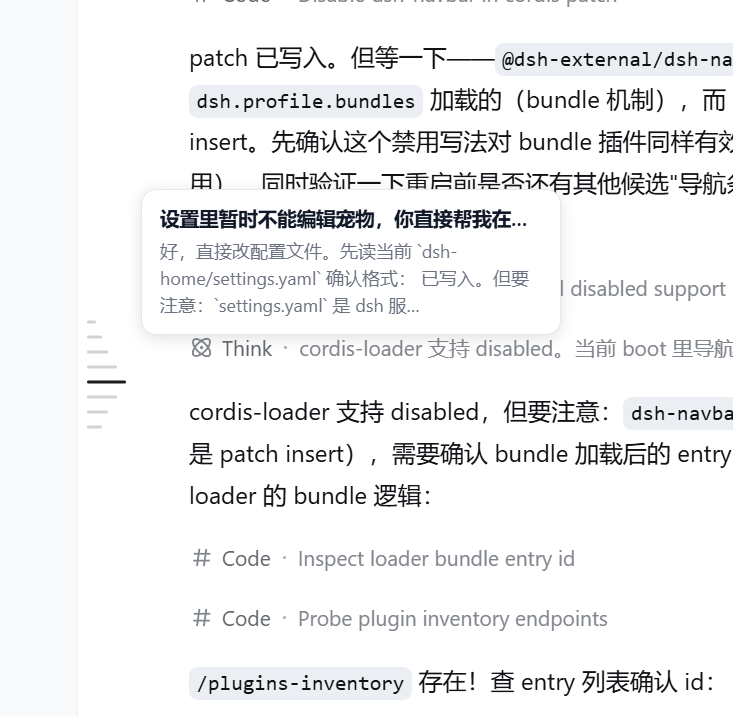

Light hover focus	Light idle focus

Full views show the bar in its real position within a session; focused views show the piano-key details (key shapes, hover ladder, message preview tooltip).

Features

• In-conversation navigation: one key per user message (including steering messages sent while an agent is running), in chronological order; model replies share their turn's key and appear in the preview.
• Reference-accurate visuals: fixed 10px key pitch, 2px bars, 6px resting / 26px hovered length (≈4.3×), cluster vertically centered in the message area; colors measured pixel-by-pixel from the reference images (light #D2D3D3 / #767779 / #1A1C1F, dark #454545 / #A3A3A3 / #FFFFFF).
• Hover ladder: the hovered key lengthens and recolors, the 3 adjacent keys step down (20 / 14 / 10px, ≈77% / 54% / 38%), the 4th neighbor returns to resting length, and edge keys clip naturally on one side.
• Hover tooltip: user message on one line (ellipsis) + the matching model reply in at most 3 lines (width-model JS truncation + -webkit-line-clamp fallback; overflow ends with …).
• Active highlight: while idle, the key of the message currently in view changes color only (length unchanged), following the scroll in real time.
• Click to jump; automatic light/dark theming (data-ds-dark-theme + prefers-color-scheme fallback).

Install

Installed into the web profile through the official DSH plugin mechanism:

# From npm (released)
dsh plugin --profile web add @kelearns/dsh-navigation-bar

# Or local development (link mode; edits to lib/client.js apply on page refresh)
dsh plugin --profile web add link:<this-directory>

Published on npm: npmjs.com/package/@kelearns/dsh-navigation-bar

Listed in awesome-dsh-plugin curated registry; also searchable as navigation-bar in the Plugin Market tab of dsh settings (dsh-market).

Note: the plugin roster is loaded at instance startup — after adding a new plugin, restart the dsh web instance, then refresh the page.

Layout

File	Purpose
index.js	host half (no-op cordis plugin)
lib/client.js	browser half (hand-written bundle, no build step; window.__ModuleLoader__.load)
cordis.patch.yml	bundle patch: inserts the plugin row into the web profile roster
package.json	dsh.bundle.patch + dsh.client (platform web) declarations
test/	headless-browser CDP diagnostics + standalone offline test page

Data sources (all official APIs):

• ctx.sessions.binding(currentId).session → ConversationSnapshot (subscribed live via useSyncExternalStore)
• DOM anchors: scrollport [data-conversation-scroll], message rows [data-chat-anchor-key]

Development / Testing

# Headless Edge + CDP audit: open a real session, check layout / colors / tooltip
node test/cdp-audit.mjs

# Reference-image pixel measurement (key pitch / ladder / palette)
node test/img-analysis.cjs   # idle reference images
node test/img-strip.cjs      # hover reference images (ladder lengths & colors)

License

MIT
