JUANWANG-BUAA/dsh-full-remote

Listed in awesome-dsh-plugin · DeepSeek Harness plugin

Current release: v0.5.0 · Distributed through GitHub Releases

English | 中文

dsh-full-remote is a plugin for DeepSeek Harness. It places an authenticated reverse proxy in front of the Harness Web server, so the Web UI can be used through a public tunnel or from a device on the local network while privileged APIs such as settings, credentials, and directory browsing remain available.

New in 0.5.0

• A selectable cross-session Task cockpit for approvals, questions, plan review and session navigation; page-lifetime drafts, offline guards and no write replay.
• Negotiated Brotli/gzip, device-isolated encoded static caching, an owned upstream connection pool, activity-aware expiry and visibility-aware, non-overlapping polling.
• Keeps DeepSeek Harness 0.2.1-rc.2 compatibility and the existing authentication and loopback-only proxy-management boundary.

Measured gains — and trade-offs

Fifteen paired local HTTP rounds against the previous already-gzipped version; these are cumulative request times, not LCP or real mobile page-load measurements.

Scenario	Baseline → 0.5.0 candidate	Meaning
Cold HTML + 4 entry assets	42.08 → 25.61 ms; 415,637 → 415,534 B	−39.1% HTTP time, only 0.025% fewer body bytes
40 warm static requests	424.68 → 28.15 ms; upstream requests 40 → 0	−93.4% HTTP time, not 100% less downstream traffic
40 conditional requests	Body 0 → 0 B; headers 6,360 → 9,800 B	Both already return 304; candidate avoids upstream but adds metadata
10 synthetic dynamic JSON requests	8.82 → 10.25 ms	16.2% slower locally; no API caching
Real React components, simulated 60 s	Hidden RPCs 50 → 0; slow visible RPCs 48 → 20	Normal visible RPCs stay 50; not a battery-life claim

Full method, same-encoding controls, limits and reproduction: English benchmark · 中文完整报告.

60-second quick start

curl -fLO https://github.com/JUANWANG-BUAA/dsh-full-remote/releases/download/v0.5.0/dsh-full-remote-0.5.0.tgz
dsh plugin --profile web add ./dsh-full-remote-0.5.0.tgz
dsh --profile web

In Settings → Reverse proxy, press Start proxy, then Start Cloudflare quick tunnel and scan the generated QR code. The invite is one-time and never contains the standing access token. For a controlled network, point an existing SSH, frp, ngrok, Tailscale, or cloudflared tunnel at the proxy target shown in the panel instead.

The quick tunnel is optional and temporary, not a managed production deployment. Read Security model before exposing a listener to the Internet. For composition details, see Compatibility and composition.

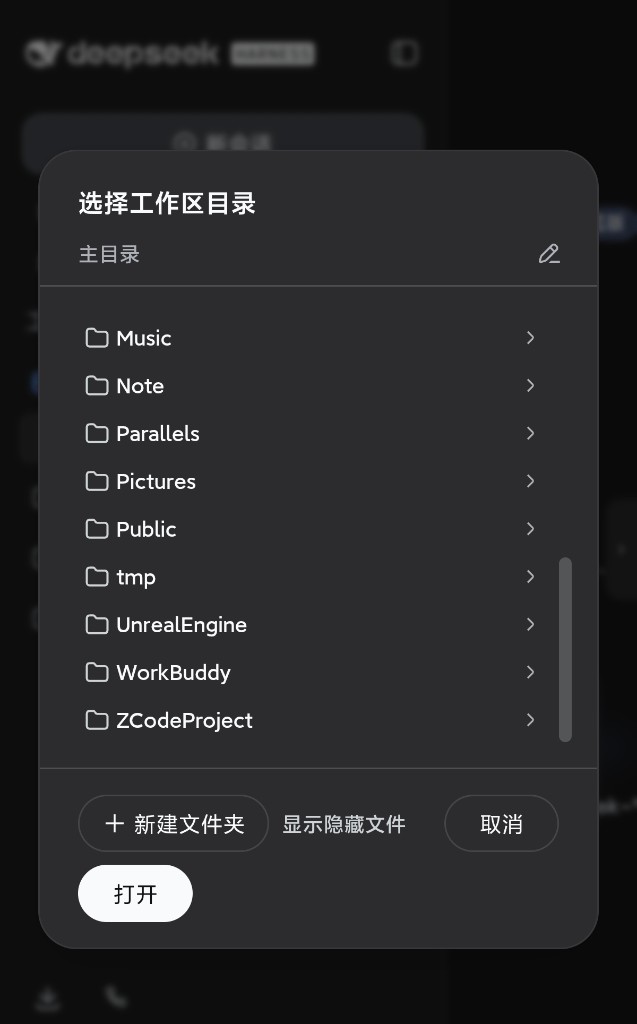

Desktop control panel	Mobile workspace

Task cockpit inbox	Cockpit question form

Problem

DeepSeek Harness binds its Web server to a loopback address and only accepts privileged requests when the Host and Origin headers refer to a loopback address. When the UI is reached through a generic tunnel, these headers carry the public hostname and the trust check fails. The page loads, but the following methods return 403:

• settings.*
• credentials.*
• host.listDirectory

Approach	Result
Generic tunnel (SSH port forward, Caddy, binding 0.0.0.0)	Page loads; settings.* / credentials.* / host.listDirectory return 403
LAN-only plugin without authentication	Usable on the local network; not suitable for public exposure
Password prompt without header rewriting	Requests are authenticated, but the privileged APIs remain blocked

Solution

The plugin inserts a reverse proxy between the tunnel and the Harness Web server. The proxy:

• rewrites Host and Origin to 127.0.0.1 before forwarding, so the privileged APIs pass Harness's trust check;
• requires an access token or a valid device session before any request is forwarded;
• forwards HTTP, SSE, and WebSocket traffic; compressible HTTP responses negotiate Brotli/gzip when eligible (not SSE or WebSocket);
• provides a settings page (Settings → Reverse proxy) for starting and stopping the proxy, changing the listen address, rotating the token, and managing device sessions.

Because the rewrite disables Harness's original trust check for remote clients, the plugin provides its own access-control layer in its place. This layer is described under Security model.

The plugin can optionally start a temporary Cloudflare quick tunnel. Any managed tunnel (cloudflared, ngrok, frp, SSH, Tailscale) can also point at the local endpoint it publishes.

How it works

flowchart LR
    A[Phone or remote browser] --> B[Public tunnel<br>cloudflared / ngrok / frp / SSH]
    B --> C[dsh-full-remote<br>127.0.0.1:3081<br>authentication + header rewrite]
    C --> D[DeepSeek Harness Web<br>127.0.0.1:3080]

1. The remote browser connects to the public tunnel, which forwards to the plugin's listener (127.0.0.1:3081 by default).
2. A request is accepted only with an access token, a valid one-time invite, or an existing device session. Requests that fail authentication do not reach the backend.
3. The proxy rewrites Host/Origin to loopback, removes untrusted headers, and forwards the request to the Harness Web server at 127.0.0.1:3080. Compressible HTTP responses (HTML/JS/CSS/JSON/SVG, ≥1 KB) may use Brotli/gzip; SSE and WebSocket are not compressed. Eligible hashed /assets/* files receive private immutable caching and bounded device-isolated server variants. HTML/API are not stored in that static cache. See HTTP transport and the benchmark.

Features

Privileged APIs

• settings.describe / update / replace / mutate
• credentials.describe / set / unset
• host.listDirectory / pickDirectory / openPath
• agentPreset.*, llm.discoverModels

Access control

• 192-bit access token, stored in a state file with mode 0600; reveal and rotation are performed from the local panel
• Per-device sessions: each login creates an independent device credential, and only a hash is persisted. Devices can be renamed or revoked from the panel, which also shows each device's source IP (at login and most recently seen).
• Optional first-visit approval: a new device waits on a page until it is approved from the local panel
• Phone invite: a QR code or a one-time link (single use, 15-minute expiry). Same-IP browser retries within 60 s reuse the original device session so a flaky tunnel dropping the redirect cannot deadlock the phone into the token form or spawn a duplicate device. The link does not contain the standing token.
• Fixed delay and per-IP lockout on failed logins
• Optional CIDR allowlist for remote IPs
• Optional trustForwardedFor to use real client IPs from a trusted local tunnel in CIDR / rate-limit / audit via its rightmost X-Forwarded-For value; CF-Connecting-IP is a separate Cloudflare-only opt-in, and loopback or malformed forwarded values are never trusted

Operation

• Fence self-check: probes settings.describe with the same Host/Origin rewrite the proxy uses
• Structured JSONL audit log (login, approval, revocation, token rotation, start, stop, WebSocket open/deny/reject) with an in-panel viewer for recent events and JSON export; rotates past 8 MB, keeping one previous generation
• Runtime listen-address changes with automatic rollback when a bind fails
• Optional local TLS (tlsCertFile / tlsKeyFile)
• Health endpoint at /_dsh_reverse_proxy/healthz
• WebSocket upgrade rate limiting: repeated failed upgrades are locked out per remote IP
• Stream-level request body limit; hop-by-hop and spoofable headers are stripped; upstream set-cookie is removed
• Negotiate Brotli quality 4 / gzip by client q values; respect no-transform and skip SSE, WebSocket, ranges, pre-encoded and tiny bodies.
• Admitted hashed /assets/* use private immutable browser caching and a device-scoped encoded LRU (8 MiB / 128 entries / at most five minutes). ETag hits can return 304; authentication/CIDR precede hits. The server-side static cache excludes API, HTML, Set-Cookie and unknown Vary responses; browser caching still respects upstream policy.
• An owned upstream keep-alive pool reduces repeat connections. Actual bytes maintain device activity without extending absolute TTL; revoked or expired quiet streams close both peers. Background polling pauses and recovery refreshes coalesce.
• Disable via compressResponses: false / cacheHashedAssets: false. See HTTP transport for the contract and the benchmark for measured gains and regressions.

One-click public tunnel (Cloudflare quick tunnel)

• Start a cloudflared quick tunnel from the panel (free, no account) and get a https://…trycloudflare.com address — no public IP or port forwarding required
• Binary resolution: cloudflaredPath → PATH → a pinned (2026.8.2), SHA256-verified download cache; failed checksums are discarded
• While the tunnel is up, forwarding-header trust applies dynamically (rate limiting / CIDR / audit see real client IPs) and reverts when the tunnel stops; the tunnel forwards to the proxy listener, so the token gate, approval and audit all keep applying
• Invites automatically use the tunnel URL: start the tunnel, generate the QR, scan from the phone (the panel shows it and the Origin can still override it)
• Mutually exclusive with local TLS (the Cloudflare edge already provides HTTPS); the quick-tunnel address is random per start and is meant for temporary sharing / emergencies

Device home (opt-in)

• A second button on the login form opens /_dsh_reverse_proxy/home: device facts (label, login IP/time, expiry estimate, security posture), self-rename, and self-logout (revokes only this device)
• The default login landing stays /; the original flow is unchanged

Mobile use

• Settings edits persist when the page is opened through a tunnel hostname
• Add workspace uses the in-app directory browser; no native dialog appears on the host display
• A minimizable Task cockpit appears on phone-width viewports (≤720 CSS px) or remote hostnames. Phones get a full-width bottom panel; wider remote windows get a compact right-side panel. Colors follow the Harness light/dark theme.
• Needs you lists the highest-priority interaction per session: tool approval, questions, or plan review. Choose any pending item, return to the inbox, or minimize without cancelling. Drafts survive switching/minimizing within the mounted page; reload, unload, or a session-service rebuild clears them.
• Sessions shows official running/unknown state, stopped activity to review, session navigation, and the last session opened during this page lifetime. Unknown is not interpreted as completed; first-load lists are not called empty.
• Disconnected submissions are disabled. Connection/foreground recovery requests a refresh, but channel connectivity is not proof of session synchronization: the UI labels values as last known. Sent actions stay locked while awaiting registry updates and never replay automatically. If the outcome is uncertain, refresh and review the item or use the original session.
• Custom answers wrap; Shift+Enter inserts a newline. The cockpit reuses official interactions/navigation, not a second chat client or a public proxy-management API. PWA, background push, reload-persistent drafts and scoped sharing are not included.
• Image paste/drop for deepseek-v4-flash-vision-exp (and other image-capable routes) goes through the same authenticated /api path. The default body cap is 160 MiB, matching Harness. Raster image responses are not gzipped
• For a phone-friendly layout (full-width session area, directory drawer, adapted dialogs), pair it with a mobile-layout plugin such as dsh-web-mobile

See cockpit validation for scope, tested viewports and repeatable checks.

Requirements

• Node.js ^22.19.0 || >=24
• A DeepSeek Harness web profile running 0.2 (0.2.1-rc.2, the npm next dist-tag and the version shipped by DeepSeek Harness Desktop 0.2.1). The plugin depends on the webServer and Host connection services plus the 0.2 client services (uiSession, uiWorkspace, ui-approval, ui-user-questions) and is not intended for headless profiles. 0.1.x is no longer supported: the 0.2 client removed @deepseek-ai/dsh-client-runtime and moved pending interactions into the uiSession registry. 0.2.1 adds the Remote access snapshot (dsh-api-remote-access); it does not restrict the browsers this proxy serves — see compatibility.

Installation

curl -fLO https://github.com/JUANWANG-BUAA/dsh-full-remote/releases/download/v0.5.0/dsh-full-remote-0.5.0.tgz
curl -fLO https://github.com/JUANWANG-BUAA/dsh-full-remote/releases/download/v0.5.0/SHA256SUMS
shasum -a 256 -c SHA256SUMS
dsh plugin --profile web add ./dsh-full-remote-0.5.0.tgz
dsh --profile web

The current release is v0.5.0. npm publication is separate and currently lags behind the GitHub release, so use the attached tarball above when installing or upgrading this version.

1. Open http://127.0.0.1:3080.
2. Open Settings → Reverse proxy (last entry in the left navigation).
3. Press Start proxy and copy the local target.
4. Point the tunnel at the target:

# Examples only. The plugin does not execute these commands.
cloudflared tunnel --url http://127.0.0.1:3081
ngrok http 3081

For devices on the same network, set the listen address to a LAN IP instead of using a tunnel.

The package was previously published as dsh-reverse-proxy; that legacy name is deprecated. Install dsh-full-remote for new deployments.

Usage

Starting and stopping

On the settings page, press Start proxy to start the listener and Stop proxy to stop it.

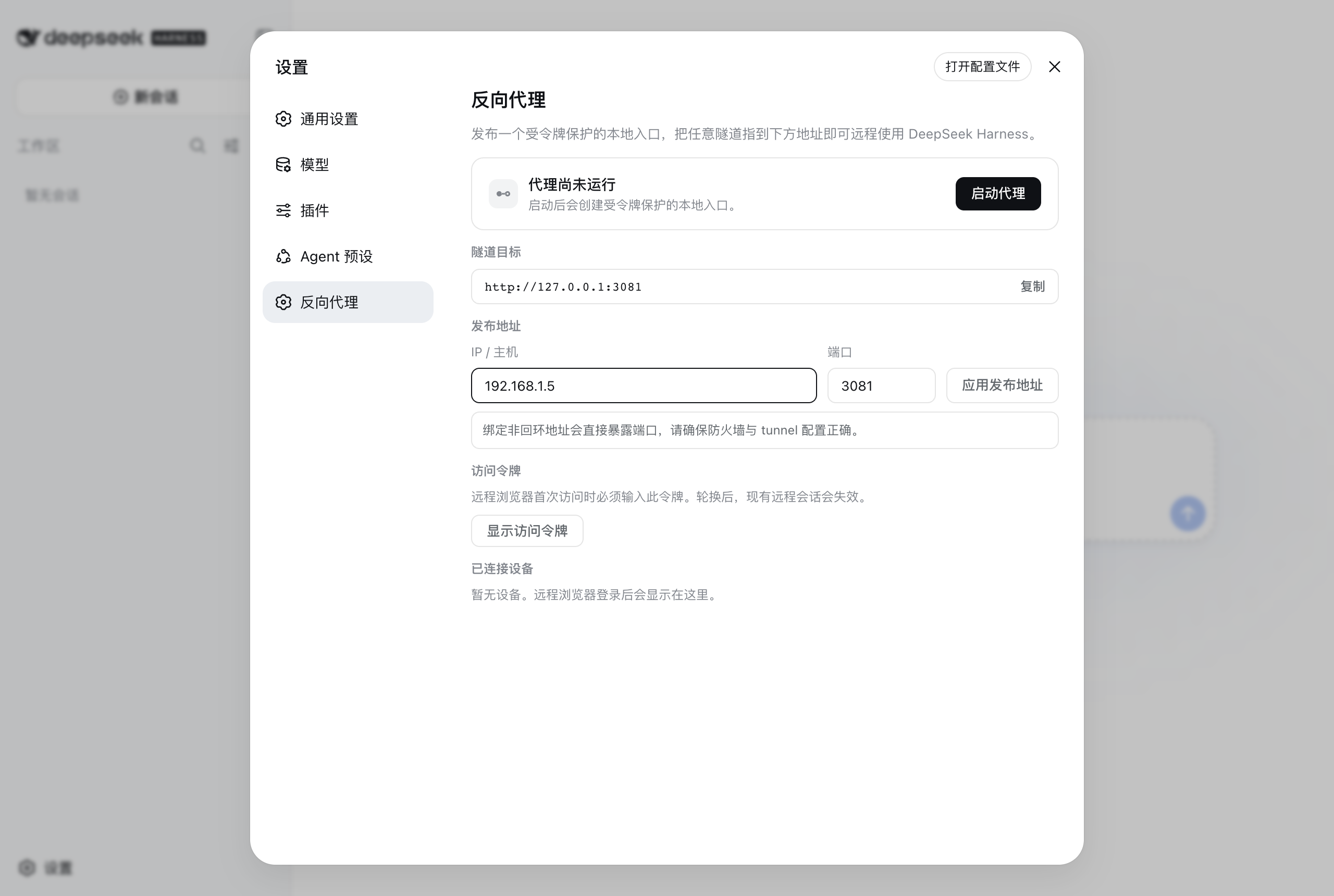

Listen address

Bind	Purpose
127.0.0.1 (default)	The tunnel runs on the same machine
192.168.x.x	A device on the same network, without a tunnel
0.0.0.0 / ::	Bind every interface. This is not an address to open; the panel reports a separate reachable address.

The listen address can be changed at runtime and persists across restarts. If a new address fails to bind, the proxy rolls back to the previous working address.

The copyable tunnel target (and any extra reachable URL the panel lists) is what a remote client should open. Binding 0.0.0.0 only listens; it is not a URL.

backendHost is the address the proxy connects to, not the address it listens on. Keep it at 127.0.0.1.

Phone invite

The QR encodes a one-time login URL. Public / reachable Origin is the host the scanning device will request: the tunnel's https://…, or the LAN URL from the panel. Leave it empty only when the tunnel target above is already that address.

Do not put 127.0.0.1 in Origin. That address is the Harness machine; a phone would open its own loopback and never reach the proxy.

Then press Generate invite. After a scan (or opening the link) the login page submits once. The invite expires in 15 minutes, works once (same-IP retries within 60 s reuse the original session), and does not contain the standing token. Invites can only be generated while the proxy is running.

Upgrade

Download the current GitHub release and add its tarball to the existing web profile:

curl -fLO https://github.com/JUANWANG-BUAA/dsh-full-remote/releases/download/v0.5.0/dsh-full-remote-0.5.0.tgz
dsh plugin --profile web add ./dsh-full-remote-0.5.0.tgz

Then restart dsh web. This replaces an older registry-installed or tarball version with v0.5.0.

Language

The plugin panel has a Language / 语言 selector: Auto, English, or 中文. Auto follows the Harness locale when available, otherwise your browser language (English for non-Chinese browsers). An explicit choice is saved per browser and origin and also applies to remote confirmation overlays. Login, approval-wait, and device-home pages continue to follow the browser’s HTTP language header.

Screenshots

The gallery is hosted in the repository; the release package keeps only runtime files and links back here so installation stays small.

Desktop

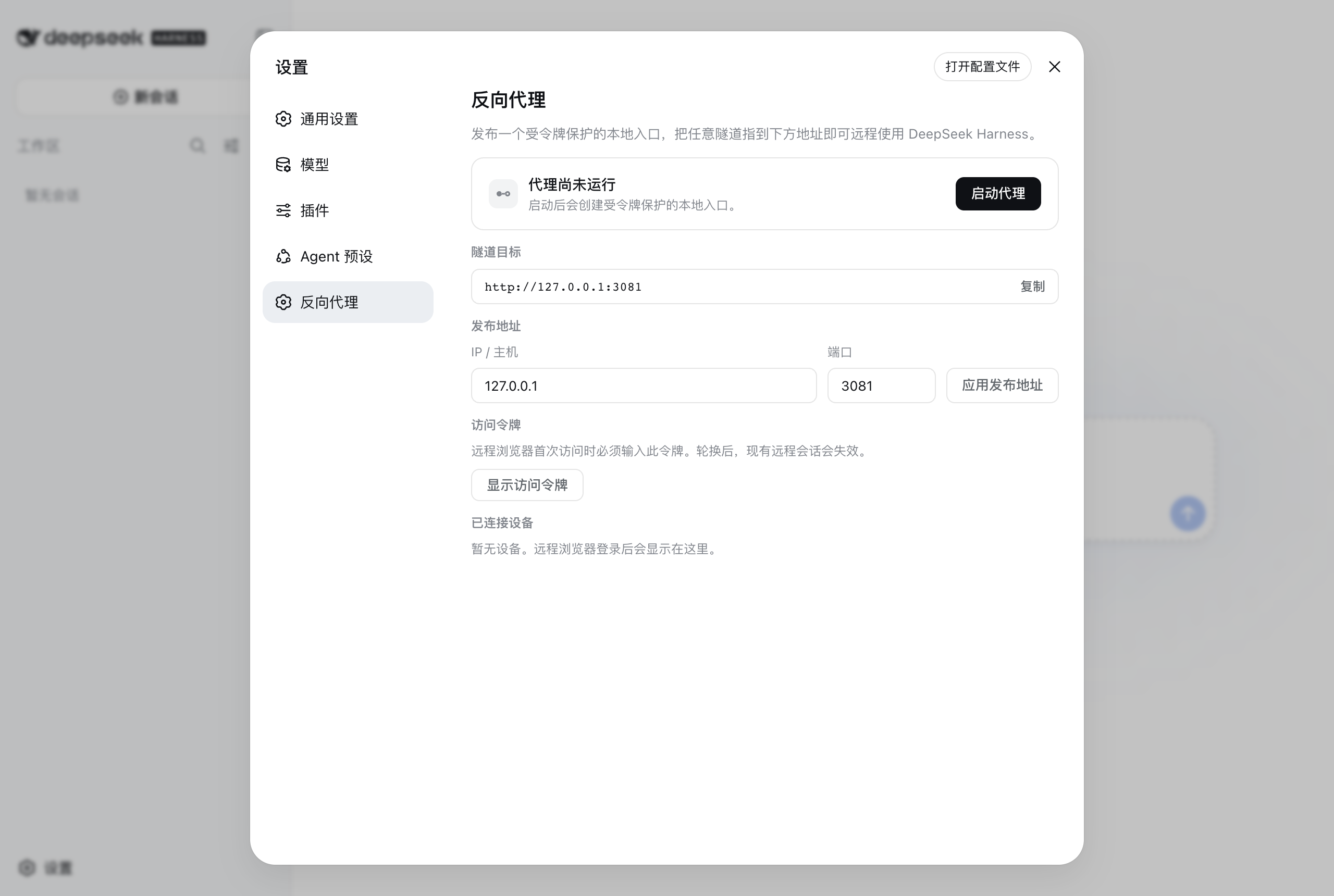

The full settings page: running status and fence self-check, listen address, recommended setup, tunnel target, one-click quick tunnel, one-time invite QR, access token, connected devices with source IPs (inline rename), and the audit viewer.

One-time phone invite (QR)	Connected devices with inline rename

Mobile

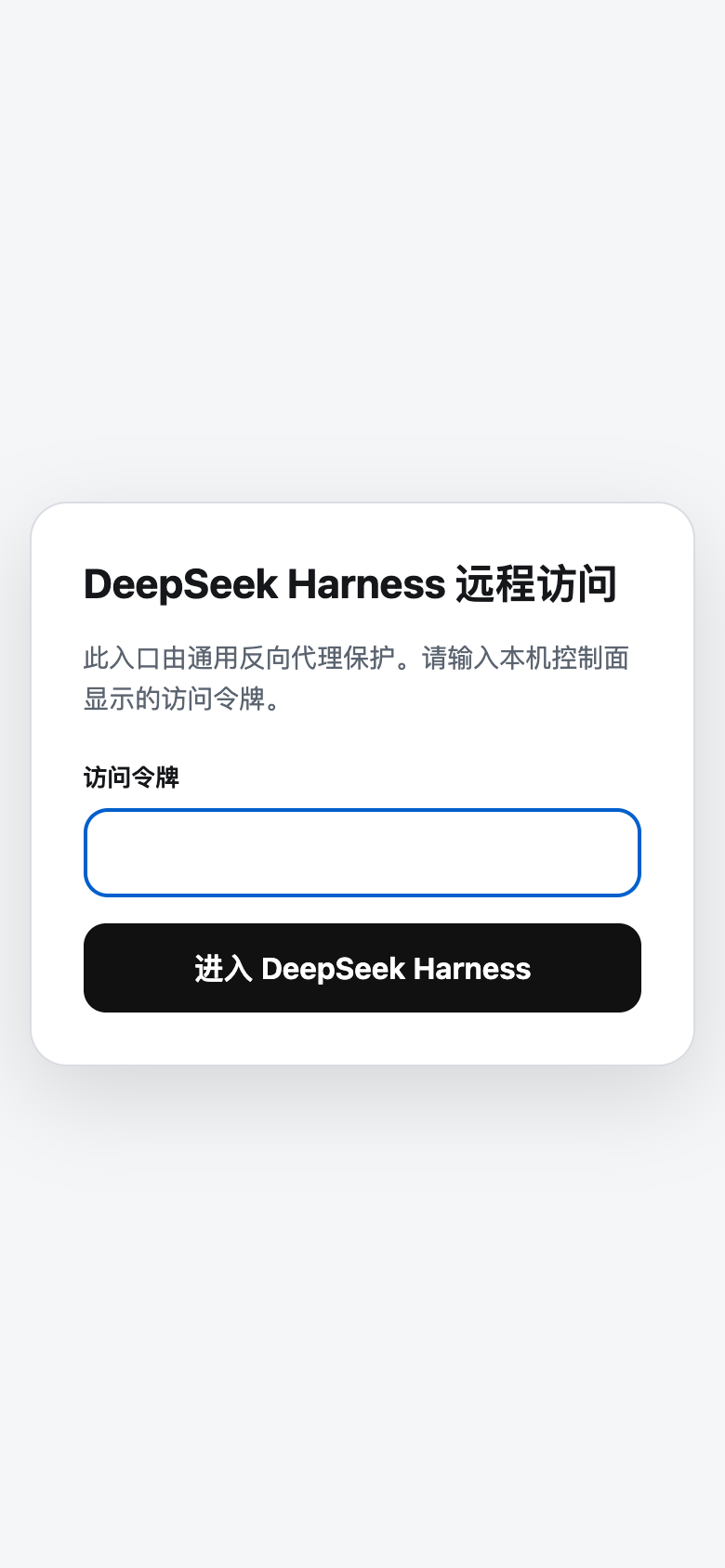

Login page	Control panel

Remote confirmation

Use the Task cockpit entry to choose a question, tool approval, or plan review across sessions. These captured fixtures show the selectable 0.5.0 cockpit; real-host acceptance provenance and limitations are in cockpit validation.

Task cockpit inbox	Cockpit question form

Gate pages

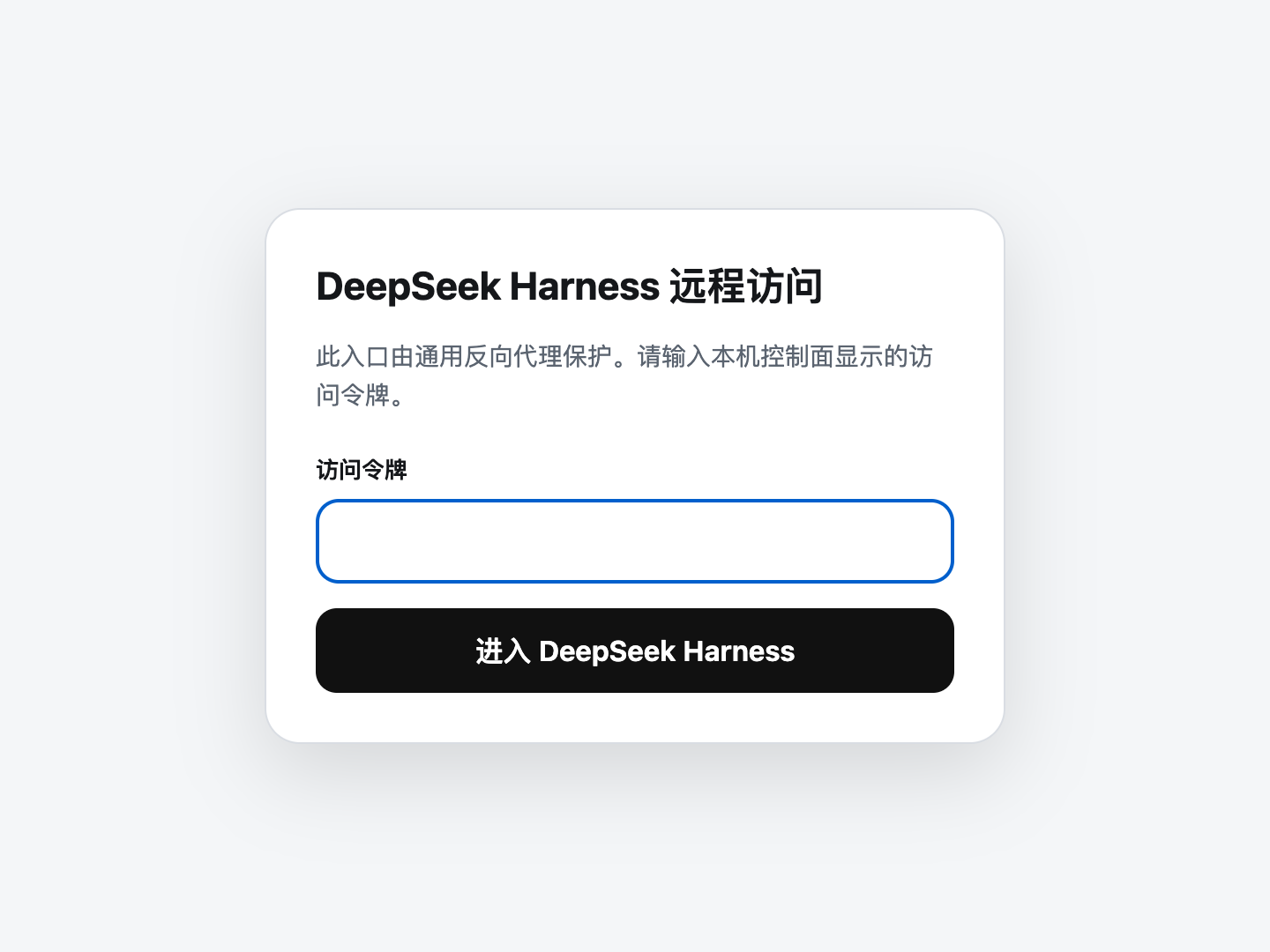

The token login (with an opt-in Device home button), the device home itself, and the first-visit approval wait page.

Device home	Waiting for approval

Configuration

Common options:

- id: reverse-proxy
  name: dsh-full-remote
  config:
    listenHost: 127.0.0.1
    listenPort: 3081
    approvalMode: false          # true: approve each new device locally
    allowedCidrs: []             # e.g. ["192.168.1.0/24"]; empty: any IP after login
    trustForwardedFor: false     # true: trust rightmost X-Forwarded-For from a trusted local tunnel
    trustCloudflareConnectingIp: false # true only with trustForwardedFor for a local Cloudflare connector
    upgradeMaxAttempts: 10       # failed WebSocket upgrades before lockout
    upgradeLockoutSeconds: 300   # lockout for repeated failed WebSocket upgrades
    headersTimeoutMs: 15000      # timeout for request headers
    requestTimeoutMs: 300000     # timeout for the complete request (headers + body); covers remote vision uploads
    upstreamTimeoutMs: 15000     # TCP connect + first POST byte after the body; not applied to SSE GET
    commandTimeoutMs: 300000     # first POST byte for host commands (/compact): /api/commands/execute, or a session.prompt whose single text part starts with "/"
    maxRequestBytes: 167772160   # 160 MiB; matches the Harness /api image envelope
    sessionIdleSeconds: 0        # 0: off; otherwise idle timeout in seconds
    auditLog: true
    allowTokenRead: false        # safer default; enable only for local token re-read
    cloudflaredPath: ""          # optional path to cloudflared for the one-click tunnel
    tlsCertFile: ""              # optional local HTTPS
    tlsKeyFile: ""
    compressResponses: true      # negotiate br/gzip; skip SSE/WS/ranges/fonts/gate pages
    cacheHashedAssets: true      # private browser cache + bounded per-device static variants

The complete option list, with defaults and validation, is defined in the package Config schema (src/config.ts) and src/config-validation.ts (source is not included in the published package).

Two points to note:

• Installing the plugin pins the in-app directory picker so that a phone can add workspaces. By default the stock adaptive picker is disabled and the browse pair is created at runtime unless another plugin already inserted it. Set DSH_FULL_REMOTE_USE_NATIVE_PICKER=1 before boot only when you deliberately want the host's native chooser and do not need remote directory browsing.
• backendHost must remain a loopback address. A wildcard or non-loopback value is rejected at load time.

Security model

The Host/Origin rewrite restores the privileged APIs and, at the same time, disables Harness's original protection for remote clients. The access-control layer provided by this plugin consists of:

• a 192-bit access token, stored locally with file mode 0600;
• an HttpOnly, SameSite=Strict session cookie per device, carrying a per-device secret of which only a hash is stored;
• a fixed delay plus a per-IP 429 lockout on failed logins;
• loopback-only control routes (/dsh-reverse-proxy/*), which require a control header and are never forwarded through the public proxy;
• removal of spoofable forwarding and hop-by-hop headers, so the proxy's own cookie never reaches the backend;
• optional trustForwardedFor: when enabled, only a loopback peer's rightmost X-Forwarded-For value is trusted for CIDR / rate-limit / audit. CF-Connecting-IP needs the separate, Cloudflare-only trustCloudflareConnectingIp opt-in; loopback or malformed values are never trusted. Keep both disabled for direct LAN access.

The access token must be treated as a secret. Terminate TLS on the public side of the tunnel. For LAN use without a tunnel, set tlsCertFile / tlsKeyFile (for example with mkcert).

Public exposure checklist. Whoever holds the token controls the whole Harness — credentials and settings included — so for anything reachable from the internet:

• enable approvalMode: true, so a new device stays pending until you approve it in the local panel (the panel shows a warning whenever the quick tunnel is online with approval off);
• consider allowedCidrs to pin the entry to known networks;
• keep auditLog: true (the default) and rotate the token after invites outlive their need.

Limitations

• Control actions (start, stop, reveal token, change listen address) can only be performed from the local Harness window, not from the tunnel URL.
• Settings persistence on a remote page relies on a temporary trust pin until Harness provides a proper deployment trust field. On Harness 0.1.0-rc.8 and later, that pin must survive the official ModuleLoader create() replacing load; otherwise Settings → Models shows settings are unavailable in this browser. "Open on host" from a phone acts on the machine running Harness.
• allowTokenRead defaults to false. When explicitly enabled, GET /token is served over loopback HTTP, so any local process that sends the control header can read the token; rotation always returns the replacement token.
• By default, a tunnel running on the same machine makes every remote client appear as 127.0.0.1 to the proxy. allowedCidrs and per-IP login lockout therefore apply to the tunnel as a whole unless trustForwardedFor: true is set behind a trusted local edge.
• The plugin replaces Harness's remote trust check with its own access-control layer. A defect in this layer has serious consequences. If Harness provides official remote access in the future, the role of this plugin should be reassessed.
• The one-click quick tunnel: the URL is random per start (old invites and logins stop working), Cloudflare positions quick tunnels as temporary/testing with terms limiting heavy non-HTML content, and the first use downloads cloudflared on demand (18–52 MB depending on the platform; Windows ARM64 has no official build — install it yourself and set cloudflaredPath). For a stable daily entry, bring your own frp / ngrok / named tunnel.
• Proxy-side Brotli/gzip can help LAN and SSH/frp; a Cloudflare quick tunnel may already compress at the edge, so do not assume the same byte savings there. Static proxy-cache hits can still avoid upstream work. Live model WebSocket output, SSE and plugin login/wait/home pages are not compressed by this HTTP path. Full contract: HTTP transport; measured gains and costs: benchmark.

Development

Build from source

pnpm pack
dsh plugin --profile web add ./dsh-full-remote-0.5.0.tgz

Git installs run the prepare build. On pnpm ≥ 10 allow it:

allowBuilds:
  dsh-full-remote: true

Checks and CI

pnpm install
pnpm run check:ci

check:ci runs lint, typecheck, unit and client tests, and a build. CI adds a real dsh plugin add smoke test against a live Harness composition. .github/workflows/canary.yml runs a weekly smoke test against the harness default-branch tip.

The loopback control API lives at /dsh-reverse-proxy/* and is never forwarded through the public proxy. The settings page is the intended interface; the raw routes are rarely needed. For example, recent audit events can be read with GET /dsh-reverse-proxy/audit?limit=50&event=login.ok from the local control surface.

Contributing · Security · License

• CONTRIBUTING.md
• SECURITY.md
• MIT © 2026 JUANWANG-BUAA
