Han-1413141/dsh-ui-hub

English | 中文

A DSH web client plugin: UI Hub. It enumerates every UI contribution from every plugin — panels, buttons, icons, charts, fields — and lets you toggle each one, position each one, avoid floating collisions, and auto-arrange them into a tidy column.

✨ Features

Feature	Description
🔍 Full discovery	Enumerates every UI inside the platform's [data-slot] anchors plus floating widgets outside slots (dsh-sticky-disclosure pills, dsh-mingli-chart views, ...); unknown widgets can be captured with Pick element
🗂️ Official vs plugin	The panel is split into Official UI and Plugin UI categories (every row also carries an official/plugin tag)
📁 Collapsible groups	Two-level collapse (category → slot group), all collapsed by default so only category/group names + counts show; expand step by step, state is remembered
🎚️ Per-widget control	Each UI root has its own switch; expand a root to toggle its inner buttons / icons / charts / fields individually
📐 Three position modes	Default (restore), Nudge (translate without leaving the layout), Float (fixed positioning with exact x/y)
🖱️ Direct drag mode	Enable Drag mode and drag any UI directly to move it (slot-mounted UIs use nudge and keep their layout; loose widgets float) or drag its bottom-right grip to resize; Esc exits
🛡️ Collision avoidance	Off (report only) / Smart (clear overlaps) / Strict (any overlap); locked items stay put and push others away
✨ One-click arrange	Packs every floating UI into right-aligned vertical columns anchored to the conversation scrollport
💾 Persistent	Toggles, positions, sizes, and collapse state live in localStorage and are restored across refreshes
🧹 Non-invasive & reversible	No plugin code is modified; only additive data-uihub-* attributes plus the hub's own !important stylesheet. Disposal removes every trace

Why

DSH is a plugin ecosystem and every plugin adds a bit of chrome: header buttons, composer badges, sidebar cards, bottom-right pills, floating charts. Plugins do not know each other's geometry, so overlap is the default. UI Hub keeps one roster and one floor plan for all of them:

1. Discover every UI and group it by slot;
2. Toggle, move, and lock each item;
3. Separate floating widgets that overlap;
4. Arrange scattered widgets into one aligned column in a click.

📸 UI gallery

Full captioned walkthrough: docs/GALLERY.md.

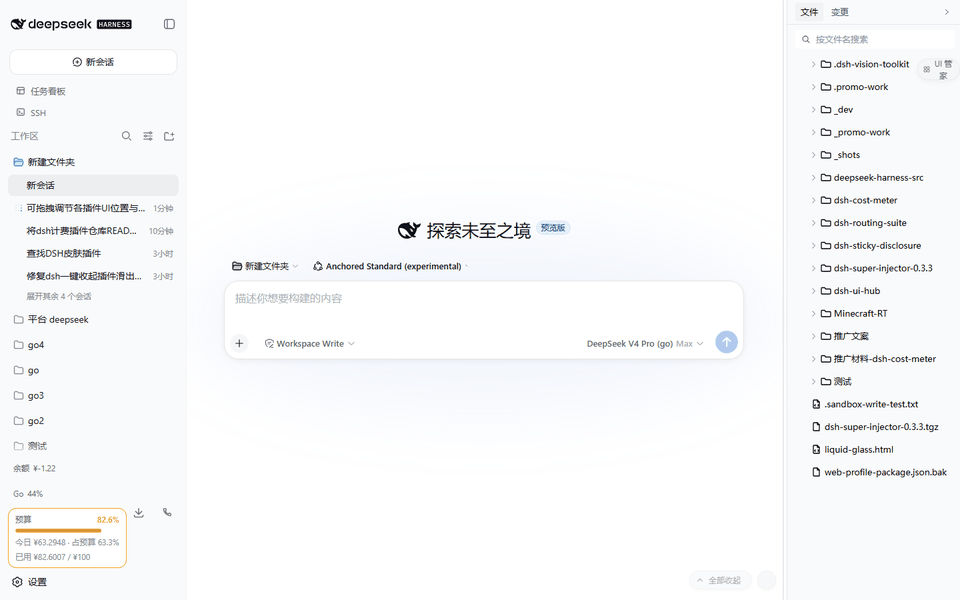

30-second demo: default collapsed → official UI expanded → group expanded → drag mode

Screen	Caption

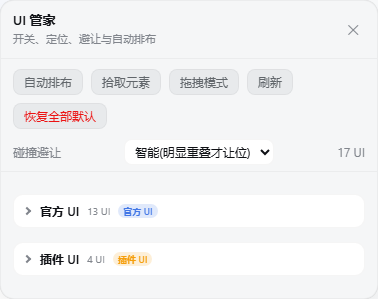

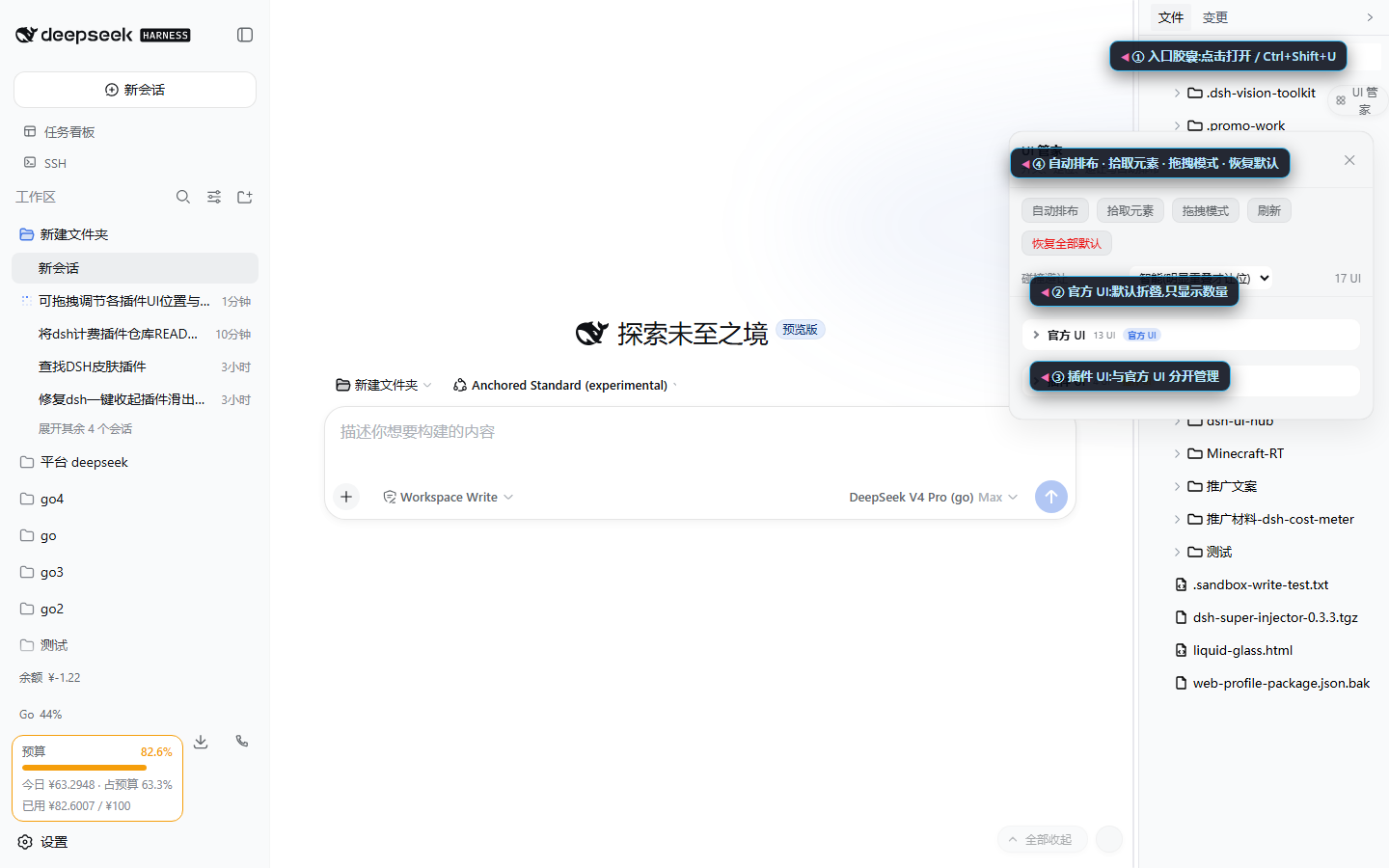

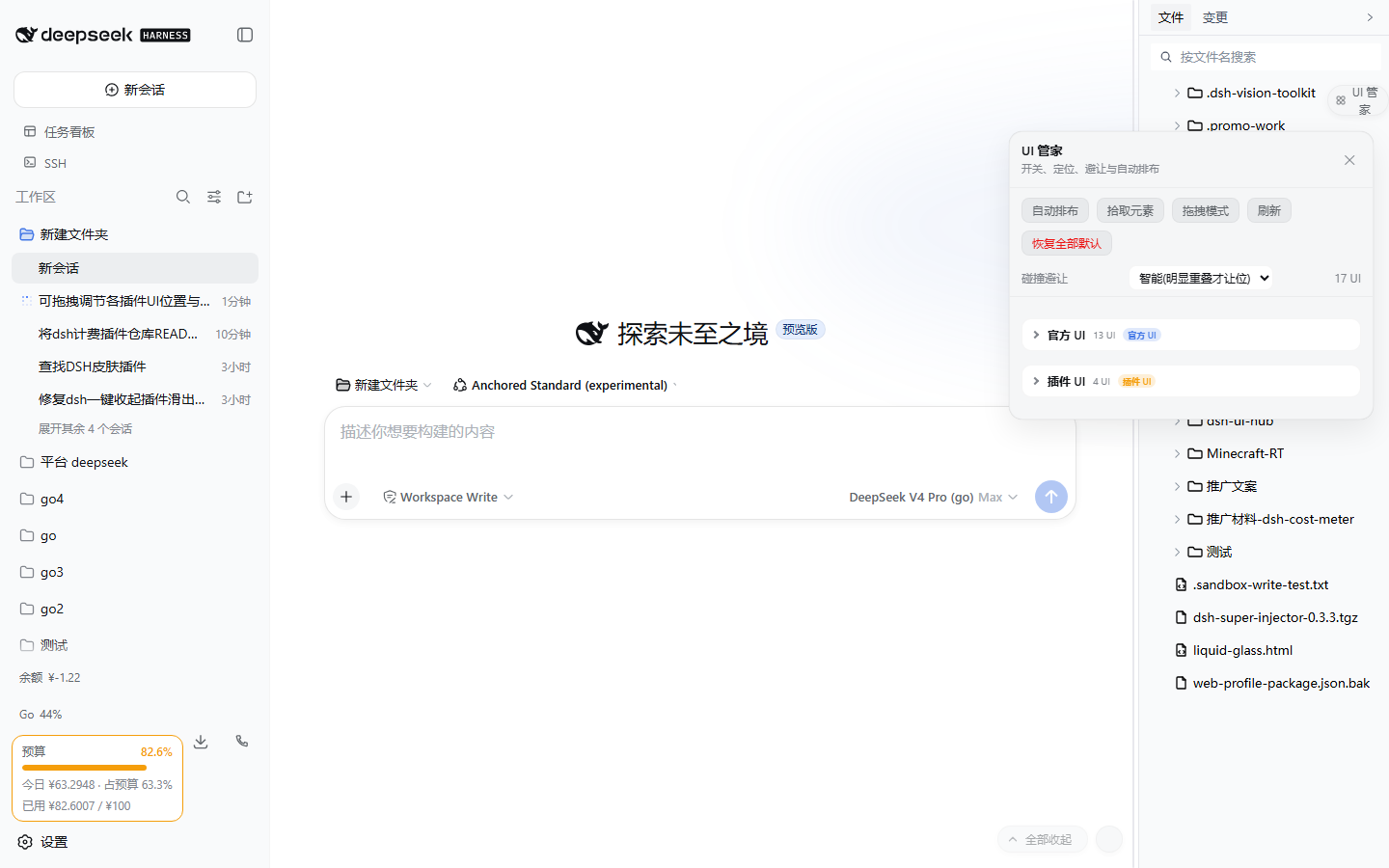

	The panel opens with only the two collapsed categories: Official UI / Plugin UI

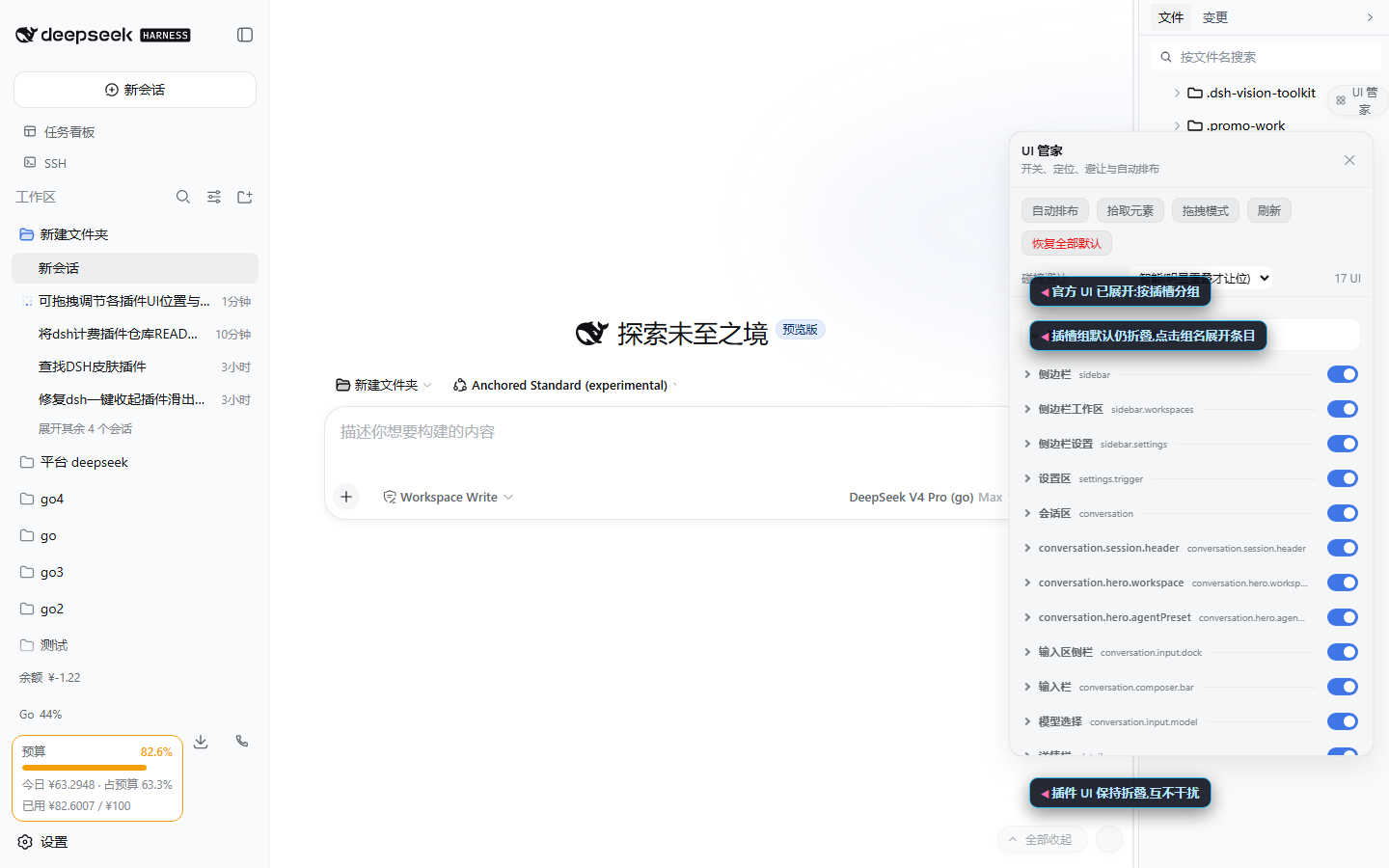

	Official UI expanded: slot groups appear, each still collapsed

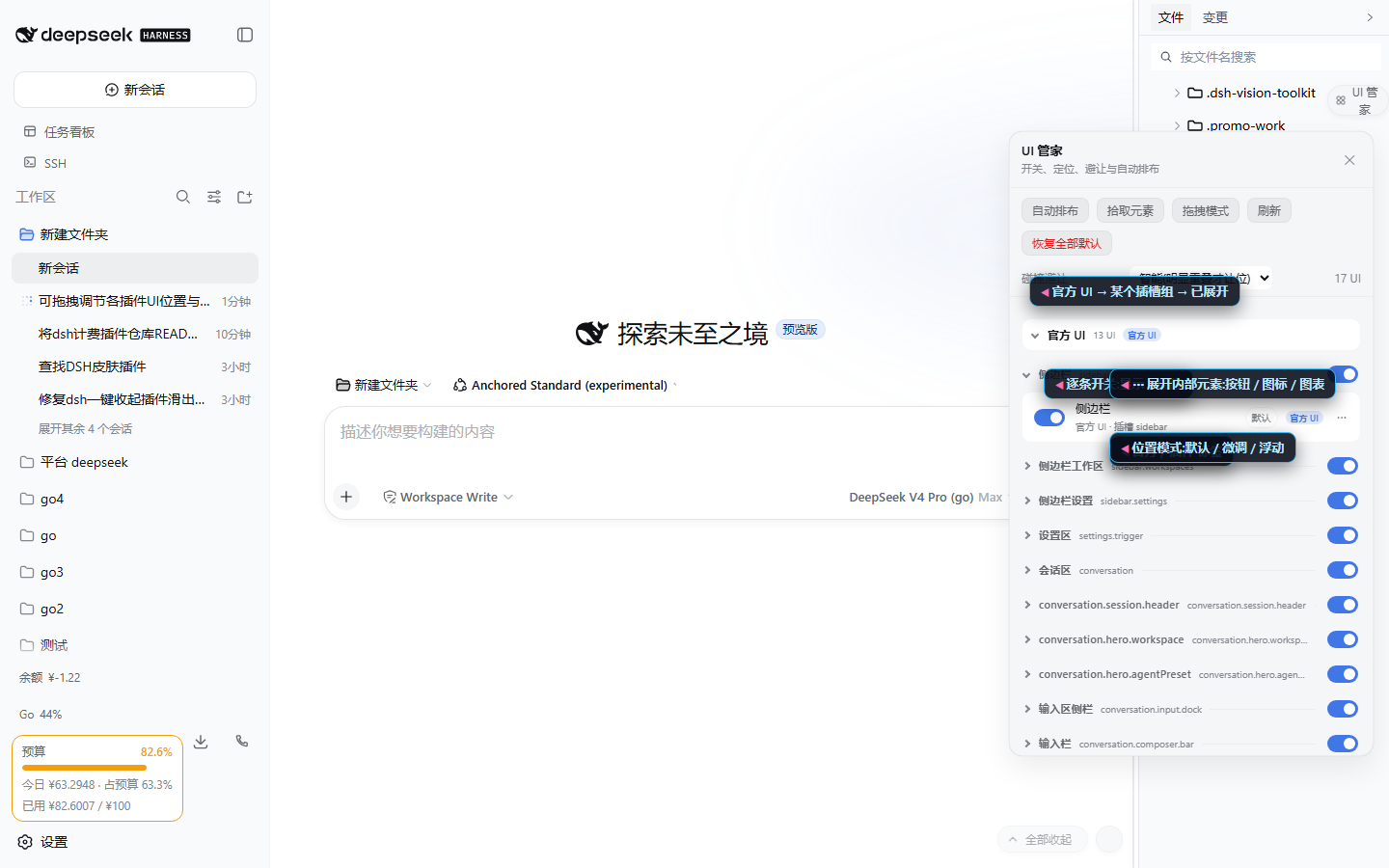

	One group expanded: per-row switches, official tag, position mode, ⋯ inner elements

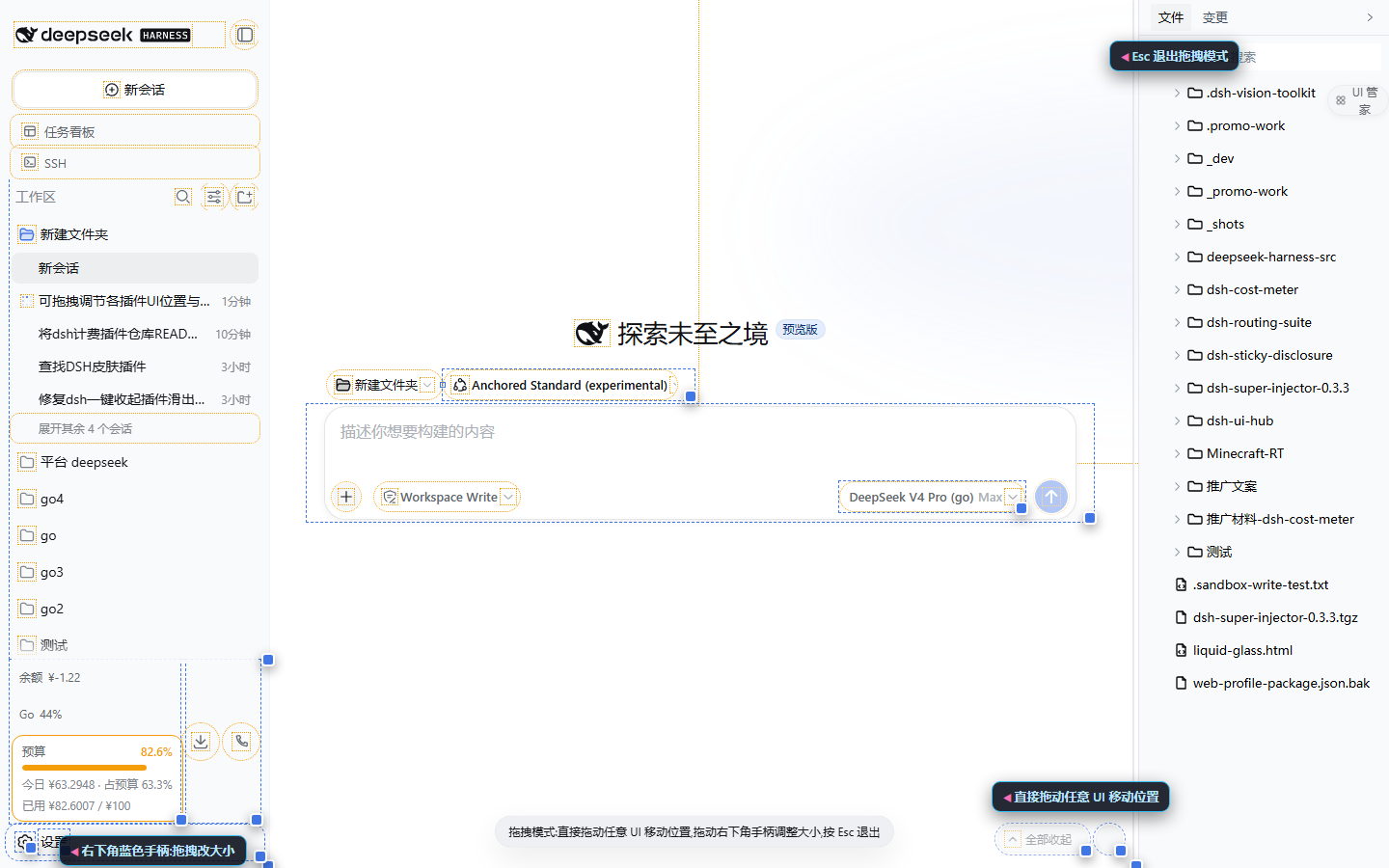

	Drag mode: dashed outlines for direct dragging, bottom-right grips for resizing, Esc to exit

Usage

1. Restart dsh web after installing. A UI Hub pill appears in the top-right corner (hotkey Ctrl+Shift+U, macOS ⌘⇧U); click it to open the panel.
2. The panel opens with the two collapsed categories Official UI / Plugin UI (all collapsed by default). Click a category to reveal its slot groups, then click a group to list its UIs.
3. Each row: left switch shows/hides the item, ⋯ expands its detail.
4. Detail pane:
   • Position mode: default / nudge / float;
   • X/Y in float mode, DX/DY in nudge mode;
   • Drag to move: a grab handle appears at the widget corner;
   • Lock: collision avoidance never moves this item;
   • Inner elements: toggle buttons, icons, charts, and fields separately.
5. Toolbar:
   • Drag mode: drag any UI directly to move it, drag its corner grip to resize, Esc to exit;
   • Auto arrange: packs all float-mode UIs into right-aligned columns;
   • Pick element: click any element on the page (even unmarked ones) to manage it;
   • Reset all: clear every toggle, position, and size.

API

window.dshUiHub.items()                 // [{ key, label, plugin, category, slot, on, mode, x, y, sw, sh, children: [...] }]
window.dshUiHub.setConfig(key, { on: false })
window.dshUiHub.setConfig(key, { mode: "float", x: 300, y: 200 })
window.dshUiHub.setConfig(key, { sw: 360, sh: 240 })     // set size
window.dshUiHub.setConfig("child:...", { on: false })
window.dshUiHub.arrange()               // one-click auto arrange
window.dshUiHub.collisionMode("strict") // off | smart | strict
window.dshUiHub.dragMode(true)          // enable/disable direct drag mode
window.dshUiHub.open() / close() / reset()

Behavior notes

• Stable identity: slot UIs are keyed slot:<slot>@<index> and re-attach across React re-renders; floating widgets are keyed by their data-* marker; picked elements by a structural path hash.
• No style fights: positions are enforced through data-uihub-float + CSS variables + !important rules, so other plugins' inline left/top writes cannot override them. Removing the attribute restores the plugin's own styles.
• Dispose restores everything: all data-uihub-* attributes, CSS variables, stylesheet, and hub chrome are removed.
• Direct drag: drag mode intercepts pointers only while enabled. Dragging a slot-mounted UI uses nudge (it stays inside the layout, so anchored popups follow it), while loose floating widgets move with float coordinates; the bottom-right grip resizes (float: resizes the floating box; default/nudge: pins an in-place size override). Ending a drag never re-fires the button's click; a plain click still reaches the plugin normally. Reset item restores the original; Esc exits.
• Floated popup follower: when an explicitly floated UI opens a popup that still appears at the original spot, the hub shifts it with the independent CSS translate property (only popups anchored at the original spot; centered full-page dialogs are untouched).
• Locked items win: arrange and avoidance skip locked items and route others around them.
• Panel and handles use z-index 80/86: above plugin floats, below app dialogs (100+).

Install

Requires Node.js ≥ 20 and DeepSeek Harness with the dsh plugin command.

One-liner (PowerShell):

irm https://raw.githubusercontent.com/Han-1413141/dsh-ui-hub/main/install.ps1 | iex

Or:

dsh plugin --profile web add github:Han-1413141/dsh-ui-hub

Local development (run from the parent directory of this repo):

dsh plugin --profile web add link:./dsh-ui-hub

Remove: dsh plugin --profile web remove dsh-ui-hub.

Tests

python test/verify.py   # Playwright chromium over test/mock.html

Covers discovery, official/plugin classification, default-collapsed categories with stepwise expansion, root/child toggles, float positioning, arrange alignment, strict collision avoidance, panel, hotkey, pick mode, direct drag move + drag resize, persistence across reload, and teardown.

Known limitations

• Float coordinate system: float mode uses position:fixed. If a UI's ancestor carries a CSS transform, fixed positions resolve against that ancestor; use Nudge for such items.
• Platform DOM changes: discovery relies on the public [data-slot] anchors and plugin data-* markers. If the platform renames them, items reappear under new keys (old configs stay local).
• Child identity: inner elements are numbered in DOM order, so configs can follow a reordered neighbor after a plugin restructures its subtree.
• No forced reflow inside slots: default/nudge modes respect the original slot layout; for a full-page rearrangement, switch items to Float and use Auto arrange.
