DamonKoy/dsh-web-ui#dsh-remote-web-ui

English | 中文

移动端远程控制 + 一键远程更新：扫码配对后用手机远程使用当前 dsh web 工作区； 点击侧边栏更新按钮自动检查并更新 dsh-web-ui 全家桶。

This repository is an external plugin package for DeepSeek Harness (DSH): scan-to-pair mobile remote control for the dsh web GUI, plus a one-click self-update for the dsh-web-ui family. It is a single dual-face package — the host half owns pairing tokens, device sessions, the /api/pair route family, and the /api/update surface; the browser half renders the sidebar-foot entries (the download trigger and the phone icon beside the settings button), the pairing panel with a QR code, live device status, and stop/refresh/copy actions, and the update panel that probes and runs the update.

What it does

• Entry: a phone icon in the sidebar foot, next to the settings button.
• Panel: "移动端远程控制" title, "扫码或在手机上打开链接，即可远程控制当前工作区" subtitle, a "手机扫码连接" card with the status area ("等待手机连接" + status badge), a large QR code, the "无法扫码？可以在手机上打开链接" hint, and three buttons: 停止 / 刷新二维码 / 复制链接.
• Phone side: scanning the QR binds the phone with a one-time, time-limited token and lands it on the standalone mobile surface at /m — a thin client purpose-built for a small screen (see Screenshots), not the desktop UI squeezed into a phone. The link carries a workspace parameter so the phone lands in the same workspace the desktop was looking at.
• Security: one active one-time token (a refresh invalidates the old link; an accepted token cannot be reused; tokens expire). 停止 revokes every paired device and the current token — paired devices are cut off on their next request. When the plugin's requirePairingForLan gate is on (default), every non-loopback /api request must carry a live paired device cookie, so the QR is the only way into a LAN-exposed dsh web.
• Live status: the desktop panel mirrors the pairing state in real time (waiting → connected → disconnected) over an SSE stream.
• Remote update: the download trigger in the sidebar foot (left of the phone icon) opens the update panel, which probes the npm registry for the installed @linxin666/dsh-* family releases. When a newer release exists the panel runs the update automatically (pnpm update --latest inside the owning dsh profile; when pnpm is missing it falls back to corepack pnpm and then npx --yes pnpm, and on Windows the command runs through cmd.exe so npm-installed .cmd shims resolve; the loopback-only /api/update/status + /api/update/run endpoints drive it) and asks for a dsh web restart to pick it up. After a green pnpm exit the installed versions are re-checked against the registry: a green exit that left every version in place (e.g. the pnpm minimumReleaseAge gate silently skipping same-day releases) is reported as a stale update with configuration guidance instead of a false success. Local link installs (development mode) are detected and report the npm state without updating.

Screenshots

The phone surface on a 390pt viewport. Light is the default theme; a sun/moon toggle in every header flips to the dark palette at any time.

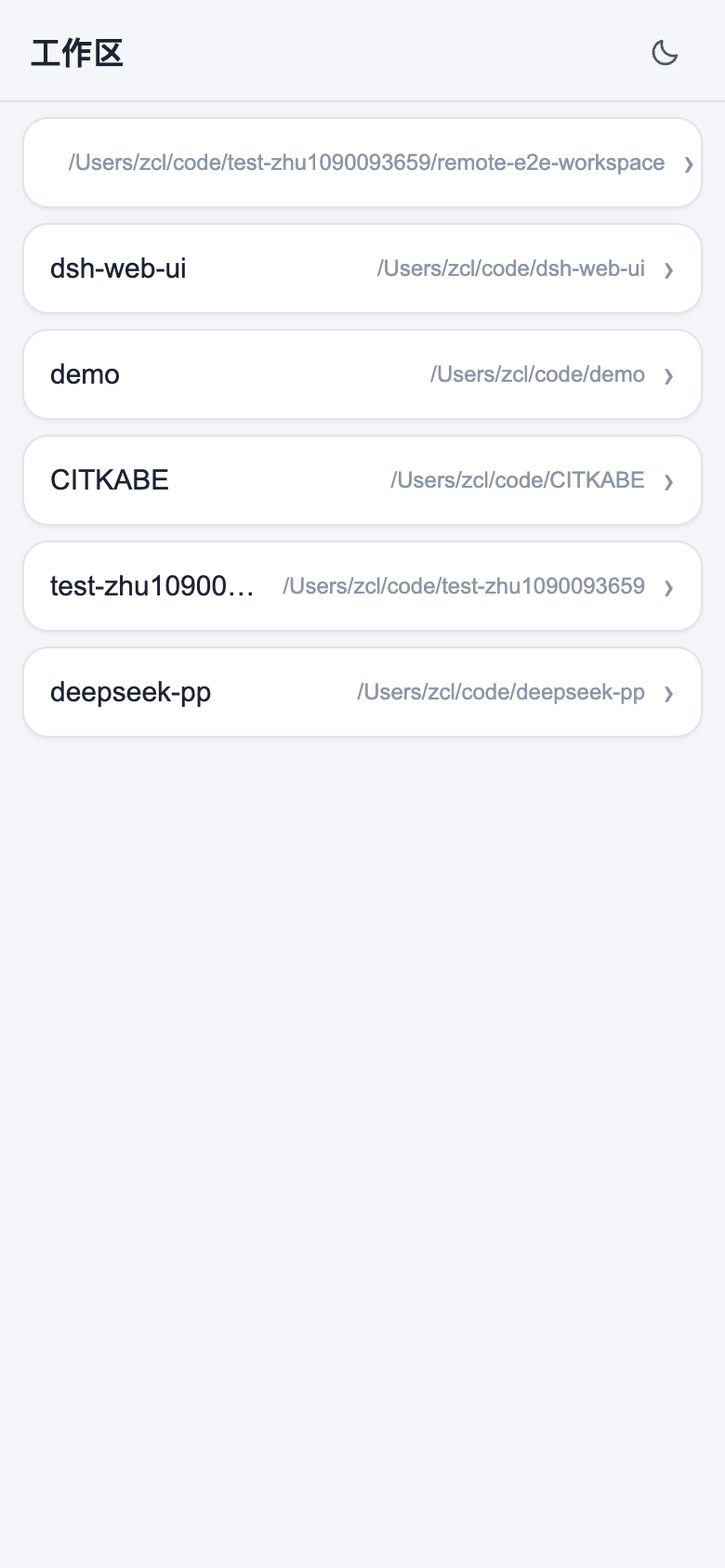

• Workspaces — the roster, each row a workspace with its own sessions:

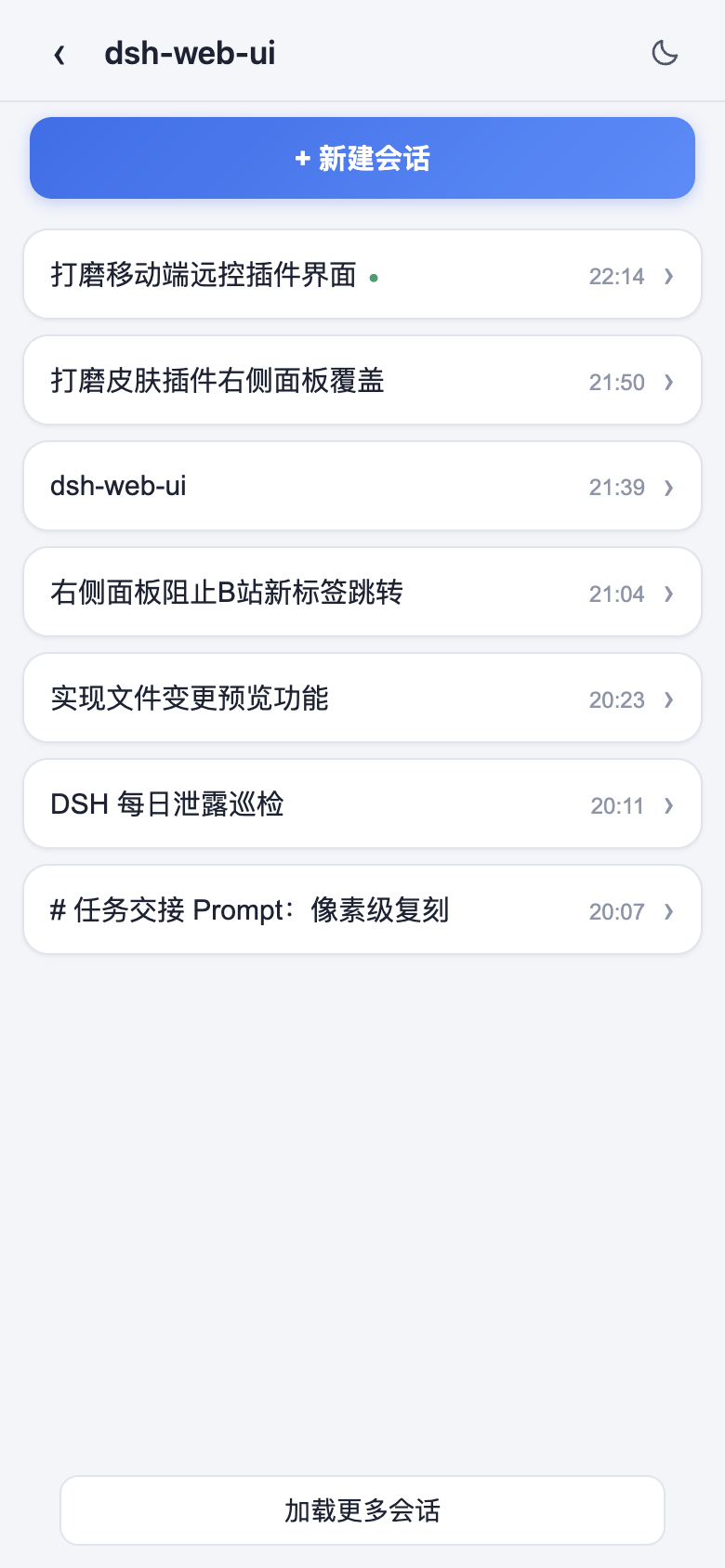

• Sessions — one workspace's sessions, headed by the 新建会话 button (creates a blank session attached to the workspace and opens it immediately):

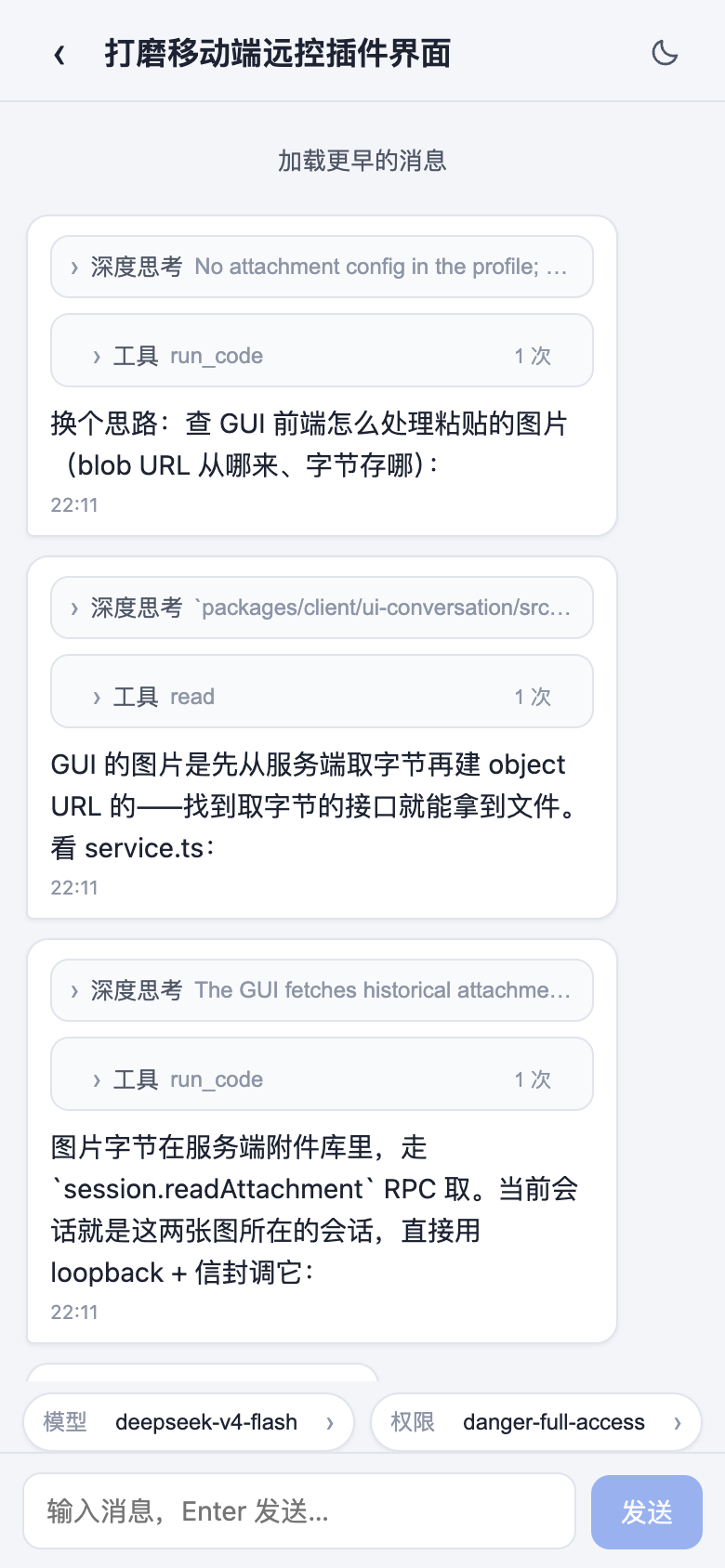

• Chat — messages with the desktop fold discipline (collapsed 深度思考 reasoning and 工具 tool-call rows), a pinned composer with 模型 / 权限 chips, and a live stream while the agent works:

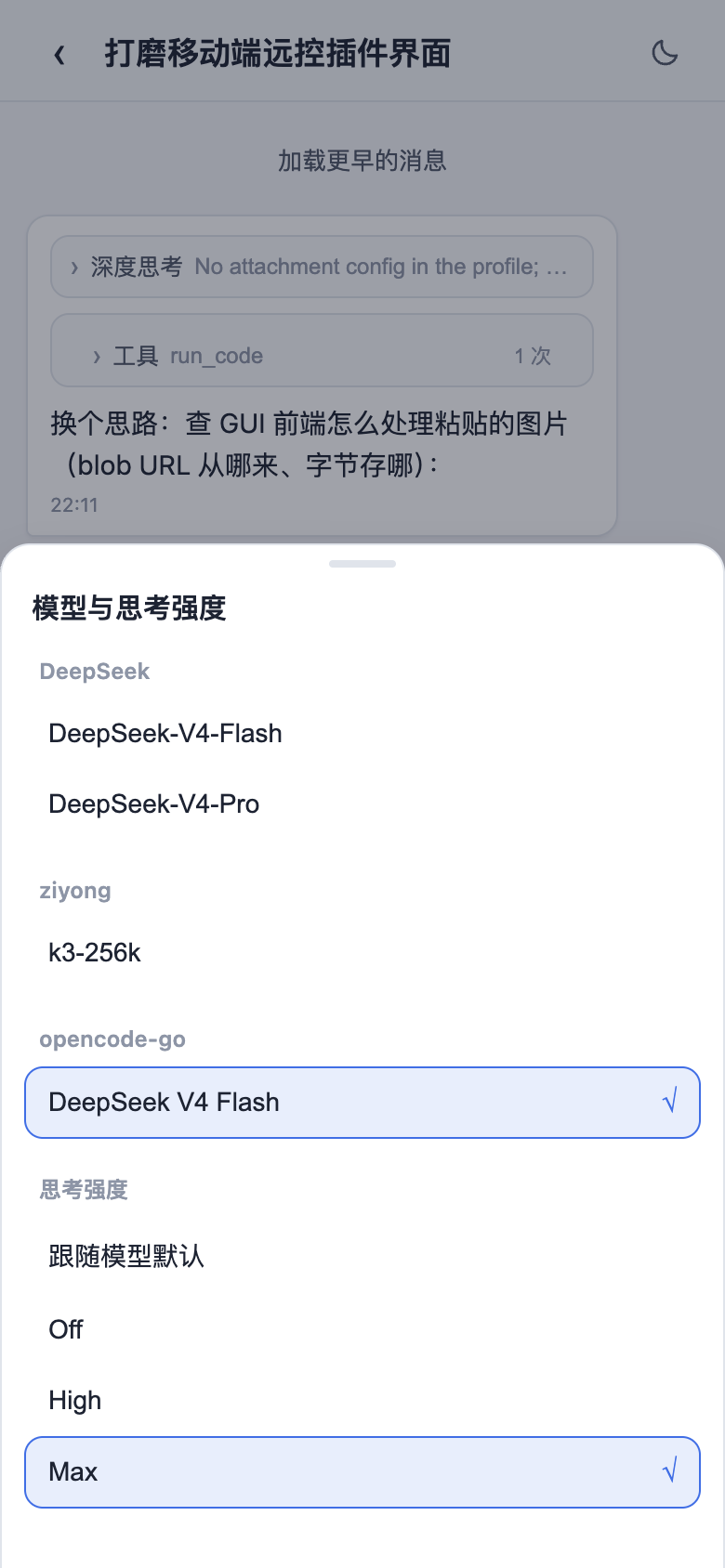

• Model picker — the bottom sheet with a provider-grouped catalog and a 思考强度 section per model (the same session.models directory the desktop uses):

Requirements

• A DSH installation whose dsh CLI supports profiles (dsh --profile, dsh plugin) — the profile/bundle mechanism this package rides on.
• For LAN use the server must be reachable from the phone: start with dsh web --host 0.0.0.0. With the default 127.0.0.1 bind the panel shows an explicit explanation instead of a dead QR code — unless a public base URL is configured (see "Remote access over the internet" below), which makes the QR reachable from anywhere without rebinding. The panel's mint/stop endpoints are loopback-only by design: a desktop browser opened at the LAN URL sees a "配对面板仅限本机使用" banner instead — open the panel at http://127.0.0.1 and let the phone use the paired link.
• For the one-click public tunnel (autoTunnel), the cloudflared platform binary ships with the package (its postinstall downloads it; a runtime download covers installers that skip postinstall scripts). No user-side tooling, account, or domain is needed — a Cloudflare quick tunnel is free and anonymous.

Install

Install the family aggregate package @linxin666/dsh-web-ui-all (all plugins and skins in one) or this plugin alone:

# Recommended: install directly from npm
dsh plugin --profile web add @linxin666/dsh-remote-web-ui

# Or from the repository (development loop)
git clone https://github.com/zhu1090093659/dsh-web-ui.git
cd dsh-web-ui
pnpm install && pnpm -r build
dsh plugin --profile web add link:$(pwd)/packages/dsh-remote-web-ui

Restart the profile (dsh web), then open the phone icon in the sidebar foot. The plugin's cordis.patch.yml inserts the single plugin row that mounts both halves.

github:<org>/<repo> installs work for a standalone repo whose package sits at the root (the prepare script builds lib/ during install; pnpm ≥10 blocks that until you copy the printed key into the profile's pnpm-workspace.yaml allowBuilds and re-run). Monorepo subpackages use the link: form above.

Use

1. dsh web --host 0.0.0.0 (the printed LAN URL confirms reachability).
2. Click the phone icon → the panel mints a fresh one-time QR.
3. Scan with the phone (or open the copied link): the phone binds and lands on the standalone mobile surface at /m — no desktop UI on a small screen. The surface is deliberately thin:
   • workspaces straight away (a 新建会话 button lives on each workspace's session list: it creates a blank session attached to that workspace via the host's session.create and opens the new chat immediately),
   • one workspace's sessions load incrementally (20 rows per page, "加载更多会话" continues; never the whole list at once),
   • opening a session fetches its chat content on demand (history pages, "加载更早的消息" goes further back),
   • a live stream shows new messages as they arrive, with a prompt box for sending your own (Enter sends and Shift+Enter inserts a newline by default; set mobileEnterToSend: false to make Enter insert a newline and reserve sending for the 发送 button),
   • a light-first theme: the surface ships a light palette by default; a sun/moon toggle in every header flips to the dark palette and the choice persists across visits (localStorage),
   • messages render with the desktop fold discipline: reasoning hides behind a collapsed 深度思考 disclosure, tool calls behind a collapsed 工具 row (tap to see each call's arguments), very long answers behind an explicit 展开全文 toggle, and each row carries its time — and
   • a composer toolbar carries the model picker (provider-grouped catalog with a 思考强度 effort section per model) and the 权限 picker (permission presets; 完全权限 requires an explicit confirm step). Both ride the host's own session.models / session.selectModel RPCs and the /permission command — the phone changes the same session settings the desktop would.
4. The desktop badge flips to 已连接 in real time; it falls back to offline/断开 when the phone leaves.
5. 刷新二维码 invalidates the old link and issues a new one. 停止 revokes mobile access: paired devices 403 on their next request, including their live stream.

The mobile surface is fully self-contained in this plugin: the /m page and its data channel (/m/api) are served by the plugin's own routes and need no harness source changes — the phone's RPC calls ride the plugin's /m/api proxy (which delegates to the host ApiProxy service and pages session.list itself), so the tunneled Host never has to enter the connection plugin's trust fence. The phone is gated by its paired-device cookie and an explicit method allowlist (settings/credentials/host-action domains are never reachable from the phone; model reads/writes are limited to the advisory session.models / session.selectModel pair, creation to session.create (workspace id only — the phone never names a working directory of its own), and the permission picker only ever sends the mode-agnostic /permission command through the already-allowlisted session.prompt); the live stream arrives over Server-Sent Events on /m/api/events.mux.

Behavior notes

• The mobile composer sends on Enter by default (Shift+Enter inserts a newline). Set mobileEnterToSend: false in the plugin settings card (or the profile patch) to make plain Enter insert a newline instead; sending then happens only through the 发送 button. The phone reads the flag through its own /m/api preferences method when a chat opens. On browsers that support field-sizing: content, the input grows with the draft up to its 120px cap in either mode.
• Installing this plugin gates non-loopback /api access behind pairing (see requirePairingForLan in src/index.ts). A desktop browser opened via the LAN URL must pair like any remote device; loopback (127.0.0.1) is unaffected. Set requirePairingForLan: false in the profile patch to restore the open-LAN behavior while keeping tokens/status/revocation.
• The QR link is built from the machine's non-internal IPv4 literals; a multi-homed host (Wi-Fi + wired, or a proxy/VPN virtual adapter) shows a radio picker so you can advertise the network the phone can actually reach. The first literal is the default. When publicBaseUrl is set, the picker adds a 公网地址 option on top — the default QR then uses the public base, and picking a LAN literal re-mints an in-network link.
• A configured publicBaseUrl satisfies the reachable-bind requirement on its own: dsh web bound to 127.0.0.1 (no --host 0.0.0.0) still mints working public QR links through the tunnel.

Remote access over the internet (tunnels)

One-click public tunnel (recommended)

Turn on autoTunnel in the plugin settings card (or set autoTunnel: true in the profile patch). The plugin then runs its own Cloudflare quick tunnel — the cloudflared binary ships with the package, no install, account, or domain needed — and wires everything itself:

• the minted https://xxx.trycloudflare.com URL becomes the QR base, so a phone anywhere can pair. The panel shows the tunnel status (starting / running / failed with the reason), and a crash is restarted automatically with backoff.

The QR stays LAN-only until the tunnel reports its URL, and a tunnel restart mints a NEW hostname — the plugin clears the old link and mints a fresh one, so users never touch configuration. Note that a quick tunnel is public: anyone with the URL can load the static page; the pairing gate is the real fence, and the phone's data channel (/m/api) is protected by its own paired-device gate plus a method allowlist — the tunneled Host never needs to enter the connection plugin's trust fence, so no profile or harness customization is required for the auto tunnel to work.

Manual tunnels (bring your own)

The QR link is normally a LAN URL, so a phone outside the house cannot use it. Point a tunnel at the dsh web port and tell the plugin its public address — the QR is then built from the tunnel URL and the phone-facing pairing fence trusts the tunneled host. Two knobs are involved:

• publicBaseUrl (plugin config, in the profile patch or the settings card): the public origin, e.g. https://foo.trycloudflare.com. The QR link is built from it, and accept/heartbeat/status accept its host. Malformed values are ignored with a warning (LAN-only behavior kept).
• --trusted-host <authority> (dsh web flag): the transport-level /api fence of the connection plugin must accept the public host too — without it every /api request through the tunnel 403s before the pairing layer (the plugin's own fence only covers the /api/pair routes). Pass the public host (or host:port) exactly as the tunnel forwards it.

Cloudflare Tunnel (quick tunnel — no account, no domain)

Install the client once (macOS: brew install cloudflared; other systems: grab the cloudflared-darwin-{arm64,amd64} binary from the official GitHub releases). Then:

# 1. Expose the local port (whatever dsh web is listening on):
cloudflared tunnel --url http://127.0.0.1:3080
#    prints something like: https://xxxx-xxxx-xxxx.trycloudflare.com

# 2. Start dsh web with that host trusted (use --host 0.0.0.0 too when LAN
#    access should stay available):
dsh web --trusted-host xxxx-xxxx-xxxx.trycloudflare.com

Then set publicBaseUrl: https://xxxx-xxxx-xxxx.trycloudflare.com in the profile patch (or the plugin settings card — it hot-reloads). Open the phone icon at http://127.0.0.1, scan the QR from anywhere: the phone binds, reloads into the mobile surface, and heartbeats keep it online.

Notes:

• Quick tunnels are free and need no login, but the hostname is random per run: every cloudflared restart changes it, so update --trusted-host and publicBaseUrl together. Cloudflare documents no uptime guarantees; in-flight-request concurrency is capped (HTTP 429 past it), and Quick Tunnels do not forward Server-Sent Events. Tailscale Serve (and tailscale serve on a single port) behaves the same way. SSE is how the phone receives live messages in real time, so over a quick tunnel or Tailscale Serve the mobile chat falls back to polling: the phone still sends and receives messages (everything else rides plain HTTP, which does forward), only a new message may arrive a few seconds late instead of instantly. The plugin polls session.history on a short interval once the SSE channel goes silent, and resumes streaming as soon as SSE works again. For true real-time push, point the QR at a tunnel that forwards SSE — a Cloudflare named tunnel (domain hosted on Cloudflare, see below), or a plain TCP port forward (LAN address, the tailscale up virtual-interface address, or a manual ssh -L / cloudflared TCP tunnel to the port).
• A quick tunnel is public: anyone with the URL can load the static page. The pairing gate is the real fence — unpaired devices get 403 on every /api call — so keep requirePairingForLan on.
• For a stable hostname, create a named tunnel from the Cloudflare dashboard (Networking → Tunnels; the domain must be hosted on Cloudflare) and use its hostname in the same two places. Reachability from mainland China is not guaranteed by Cloudflare; verify locally.
• Tailscale is an alternative for personal use that needs no plugin changes at all: its virtual-interface address (100.x.y.z) shows up in the QR's address picker automatically, and a phone on the same tailnet reaches it like a LAN host.

Development

Work from this repository (no sibling checkout needed):

cd ~/code/dsh-web-ui
export NPM_TOKEN='<token>'   # only if private @deepseek-ai auth is still required
pnpm install
pnpm --filter @linxin666/dsh-remote-web-ui run build
pnpm --filter @linxin666/dsh-remote-web-ui test
pnpm --filter @linxin666/dsh-remote-web-ui run typecheck

The peer APIs come from the official NPM SDK: every @deepseek-ai/* package used here is declared in devDependencies (rc.6), and TypeScript/Vitest resolve types straight from node_modules — no DSH source checkout is required. The consumer-side prepare build (tsdown.prepare.config.ts) transpiles without type checking, so git installs work without any harness checkout either.

Checks

pnpm run typecheck
pnpm test
pnpm run build

Harness contract dependencies

This plugin rides three harness seams that may not exist in older checkouts:

• api/gate waterfall (packages/client/connection): the /api route and event WebSocket upgrades emit this event after the trust fence so plugins can enforce application-level access control. Without it, revocation has no server-side teeth.
• sidebar.remote foot seat (packages/client/ui-sidebar): the sidebar declares and renders the seat the phone entry occupies.
• LAN runtime connection fixes (host-apiproxy mintRpcId fallback for insecure-context origins; the 20260808-branch connection loop opening the host stream after the mux stream): without them the browser runtime cannot run on a plain-HTTP LAN page at all (the mobile side of this feature).

The fence helpers (isTrustedApiRequest / isLoopbackHostname) are reimplemented locally in src/gate.ts / src/routes.ts: the 20260810 upstream moved the trust fence inside the connection plugin and stopped exporting them, so the pairing routes carry their own copy scoped to the literals the QR links advertise. See the Agent Notes api-gate-and-sidebar-remote-seat and lan-runtime-connection-fixes in the harness checkout.

Manual E2E: LAN pairing round trip

The unit/component specs cover the route family, the gate, and the panel, but the pairing loop involves a real browser on a non-loopback origin. Repeat this after any change to the wire contract or the connection loop:

1. Start the server on all interfaces with a test workspace root: dsh web --host 0.0.0.0 --port 3190 --workspace-root /tmp/remote-e2e.
2. Open the loopback URL (http://127.0.0.1:3190) in a browser: the phone icon sits in the sidebar foot; the panel mints a QR instantly.
3. In a second tab (or a phone) open the LAN URL with the pair token (e.g. http://192.168.1.7:3190/?pair=<token>): the page accepts, sets the HttpOnly dsh_pair cookie, reloads, and boots the full UI — no console errors, and a generation round trip completes.
4. The desktop badge flips to 已连接 in real time; a LAN-origin desktop page instead shows the 配对面板仅限本机使用 banner and opens no status stream.
5. 停止 on the desktop cuts the phone off: its next /api request 403s (reconnect loops retry until a fresh QR re-pairs).

The public path is the same round trip through a tunnel (see "Remote access over the internet"): loopback mint → phone opens the public QR URL → accept → full UI. Both publicBaseUrl (plugin config) and --trusted-host (dsh web flag) must name the tunneled host; the desktop panel still opens at http://127.0.0.1.

Known Limitations and Deferred Work

• Revocation is per-request: a paired phone whose request is already in flight when 停止 lands completes that request; the next one 403s.
• Device sessions are in-memory: pairing state (token + devices) resets with the dsh web process.
• No per-device management UI: the panel shows aggregate status (waiting / connected N / offline); individual device revocation is deferred.
• Quick-tunnel hostnames change per run: a trycloudflare.com URL is random on every cloudflared start, so --trusted-host and publicBaseUrl must be updated together whenever the tunnel restarts. A named tunnel (fixed hostname) avoids the churn.
• Dev HMR: dsh web --dev polls every roster bundle by path, so rebuilding this package (its own tsdown --watch) hot-reloads the client bundle; no harness-side watcher is involved.

Dependency rationale

qrcode.react (MIT, actively maintained, React 16–19 support) renders the QR as a dependency-free SVG component — no canvas, no server-side image generation. It is inlined into the client bundle at build time (like the official skin/turtle-ui plugins inline their non-shared deps), so profile installations need no extra runtime dependency beyond the dsh peer closure. schemastery is the DSH-standard config schema validator.
